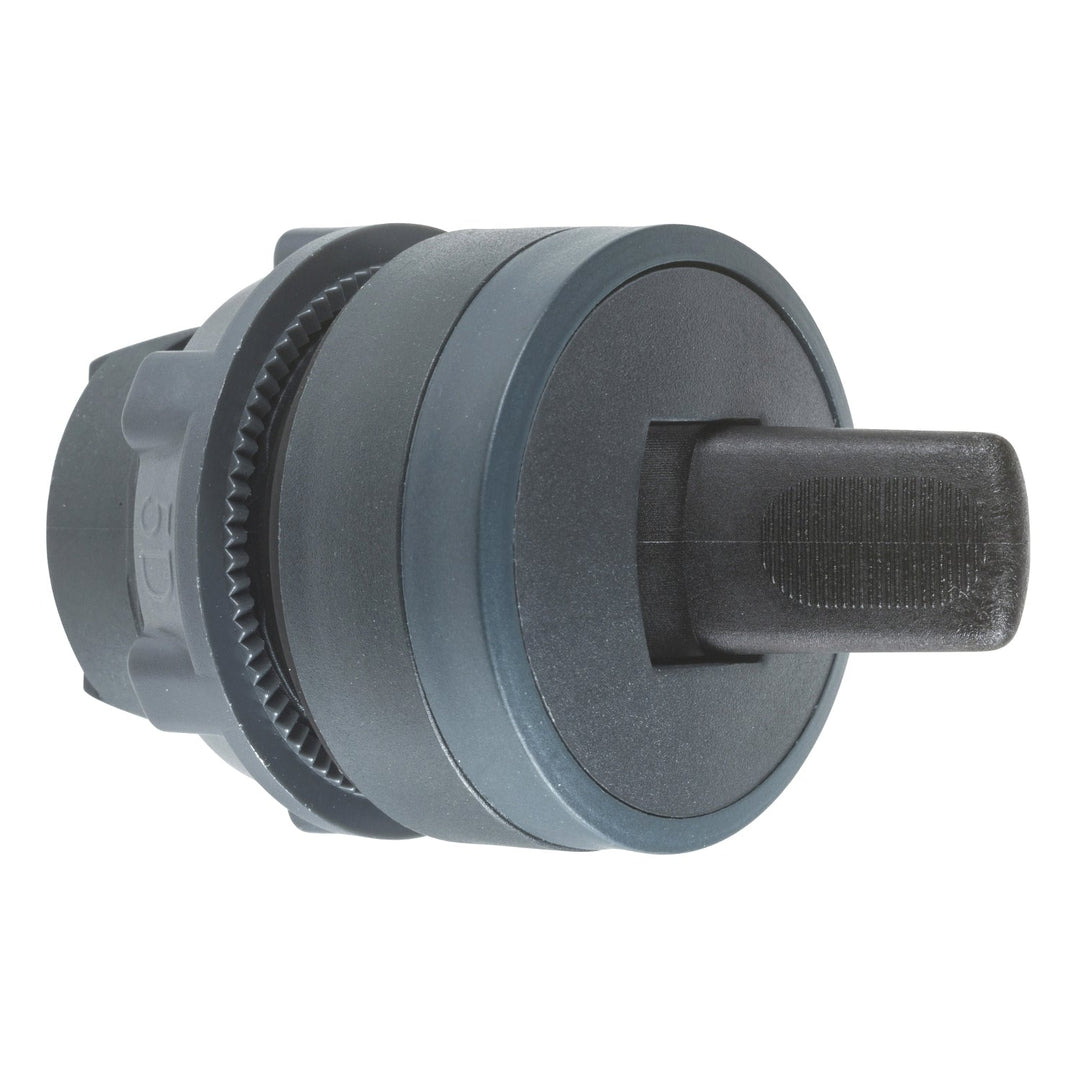

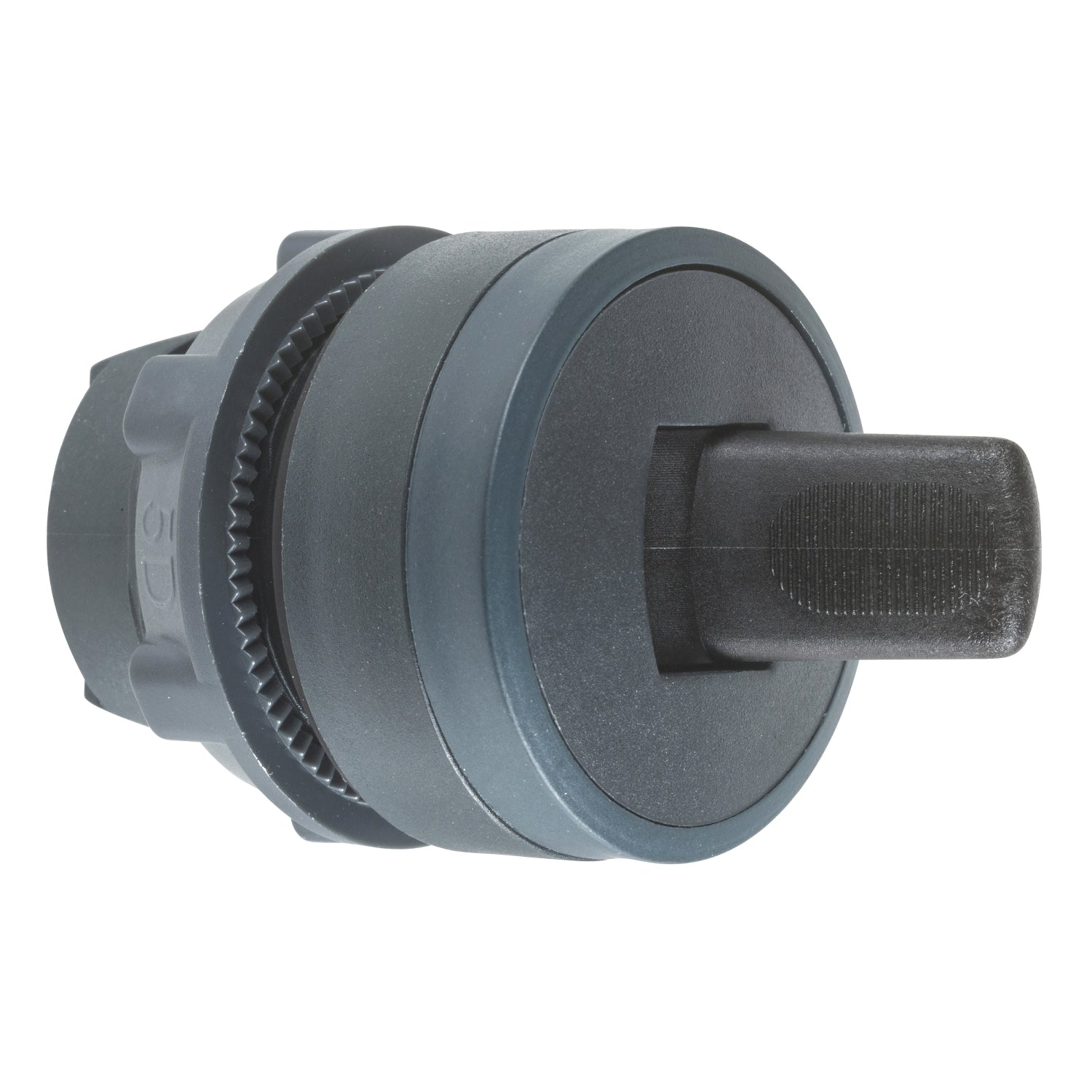

Schneider Electric ZB5AD48 - Selector Switch Head 22mm Black
Schneider Electric ZB5AD48 - Selector Switch Head 22mm Black

Schneider Electric ZB5AD48 - Selector Switch Head 22mm Black

Schneider Electric
Price
Save $-49.47
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Schneider Electric ZB5AD48 is a 22mm selector switch head from the Harmony XB5 series, designed for momentary contact control in industrial environments. This black 2-position unit features a spring-return mechanism that returns the lever from right to left, providing reliable two-way operation with up-down lever movement. The switch head is constructed for durability with an IP65 rating, NEMA 1, 2, 3, 4, 4X, 12, 13 enclosure protection, and IK06 impact resistance, operating effectively across a temperature range of -40 to 70 degrees C. It complies with multiple international standards including UL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, and JIS C8201-1. Typical applications include control panels, machinery, and automation systems requiring robust momentary switching in harsh industrial settings.

Key Features & Specifications
  • Type: Selector switch head
  • Size: 22mm diameter
  • Color: Black
  • Positions: 2-position
  • Operation: Spring return (momentary)
  • Contact Configuration: Two-way
  • Lever Movement: Up-down
  • Operating Temperature: -40 to 70 degrees C
  • IP Rating: IP65
  • NEMA Ratings: NEMA 1, 2, 3, 4, 4X, 12, 13
  • Impact Resistance: IK06
  • Weight: 0.051 lb
  • Standards: UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-1
