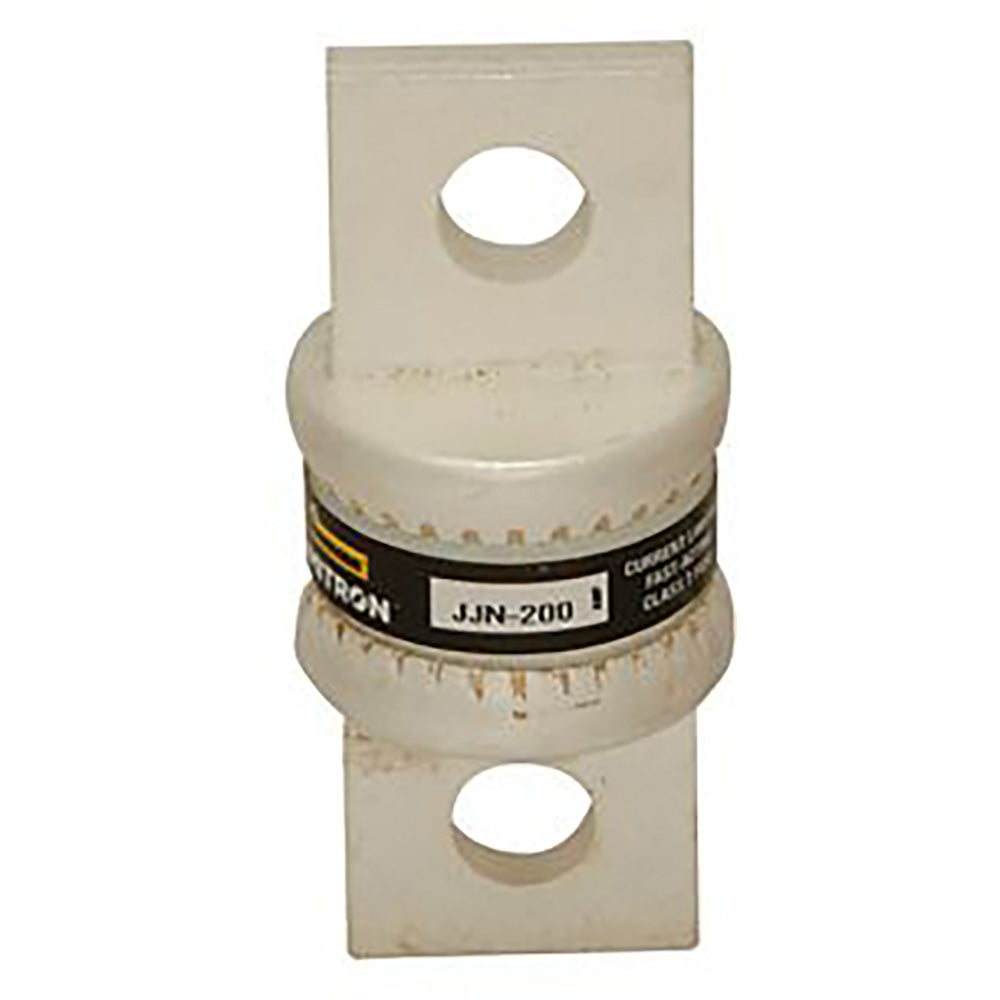

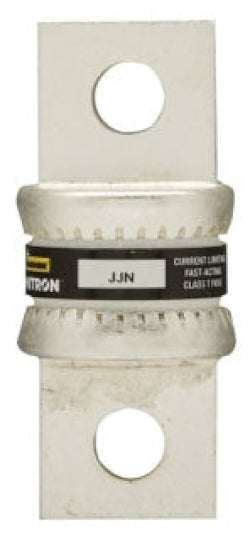

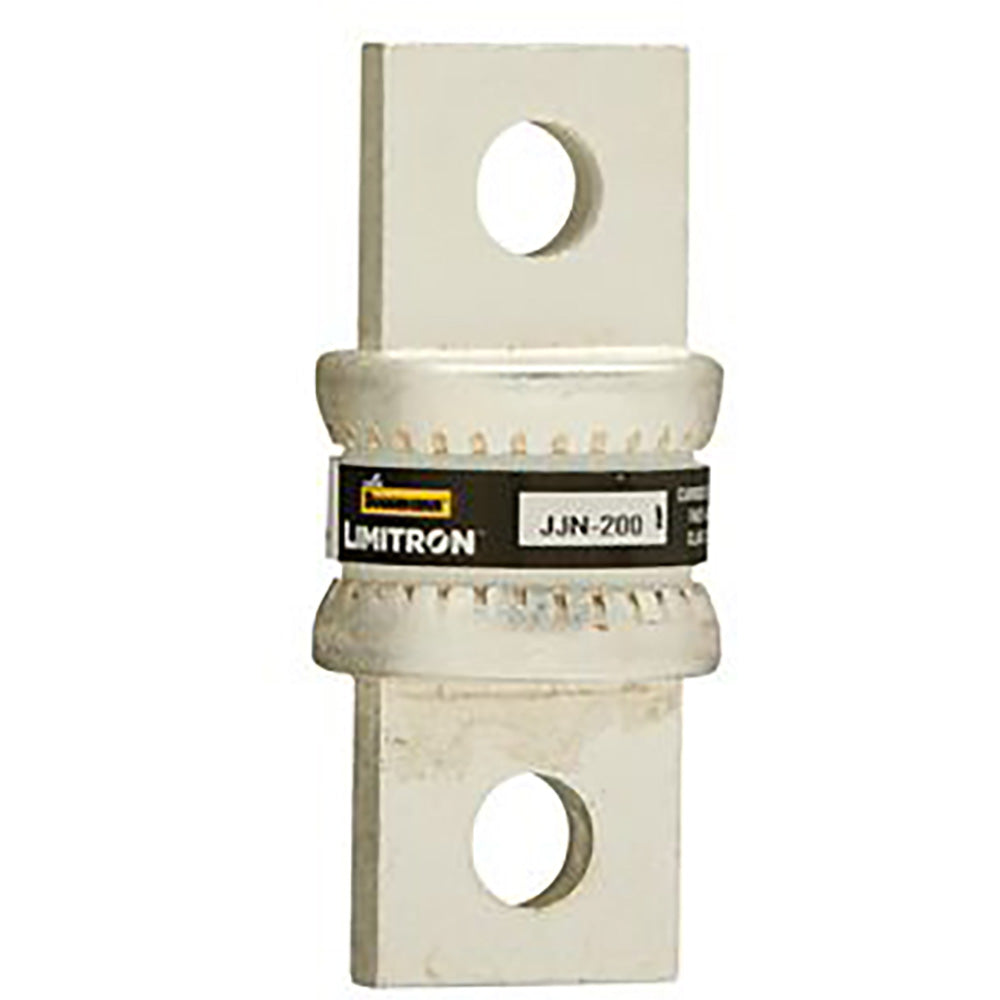

Eaton Bussmann JJN-200 - Class T Fuse 200A 300V (200kA AIC Rating)

Eaton Bussmann JJN-200 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 200A current rating and 300V voltage rating with an impressive 200kA interrupting capacity at 300V for reliable short-circuit protection. The fuse construction includes a single-barrel design measuring 0.88 inches in diameter and 2-7/16 inches in length, weighing 1 lb, built to withstand demanding industrial environments. It complies with CE/UL-248-15 Guide JDDZ and CSA Class 1422-02 standards, ensuring reliable performance in industrial power distribution systems, motor branch circuits, and equipment protection applications where high fault current interruption is critical.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 300V AC
• Current Rating: 200A
• Dimensions: 0.88" diameter x 2-7/16" length
• Weight: 1 lb
• Standards: CE/UL-248-15 Guide JDDZ, CSA Class 1422-02
• Applications: Industrial power distribution, motor protection, equipment circuits
• AIC rating: 200kA@300V
• Class Rating: T
• Barrels: 1
• Certification: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712627030
• GTIN: 00051712627030
