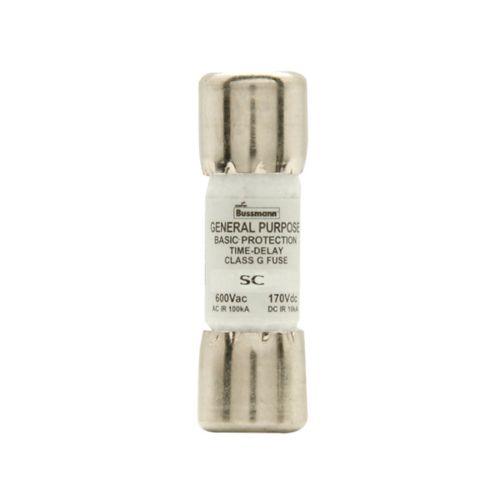

Bussmann SC-1/2 - Class G Fuse 1A 600V (100kA AIC Rating)

Bussmann SC-1/2 is a low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial applications. It features a 1A current rating and 600V AC voltage rating with a 100kA interrupting capacity, providing reliable overcurrent protection. The fuse measures 1-5/16 inches in length with a 0.41-inch diameter single-barrel construction and weighs 1 lb. It meets CE, CSA Guide 1422-01, and UL 248-5 Guide JDDZ standards for safety and performance compliance. Typical applications include motor branch circuits, transformer protection, and industrial control panels where Class G fusing is required.

Key Features & Specifications

• Type: SC Series current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-5/16 inches length x 0.41 inches diameter
• Standards: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
• Applications: Motor branch circuits, transformer protection, industrial control panels
• AIC rating: 100kA@600V
• Class Rating: G
• Barrels: 1
• Diameter: 0.41 inches
• Weight: 1 lb
• Certification: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ

Product Identification

• UPC: 051712250009
• GTIN: 00051712250009
