Burndy YGHR29C34 - Copper Ground Rod Connector 4/0-250kcmil
Burndy YGHR29C34 - Copper Ground Rod Connector 4/0-250kcmil

Burndy YGHR29C34 - Copper Ground Rod Connector 4/0-250kcmil

Burndy
Price
Save $-72.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

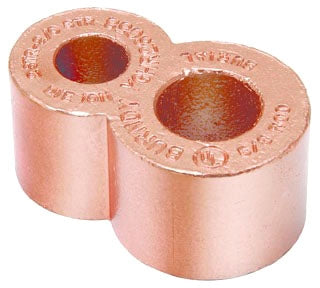

Burndy YGHR29C34 is a copper compression ground rod connector engineered for securing 4/0 AWG to 250 kcmil stranded copper conductors to 3/4 inch ground rods. This connector delivers high torque strength through irreversible compression, requiring a single crimp with the UPRECRIMP58 die, and is treated with Penetrox E oxide inhibitor for enhanced corrosion resistance. It is rated for direct burial in earth or concrete, with a weight of 5.19 lb. The product is UL467 listed and IEEE 837 compliant, ensuring reliable grounding performance in industrial and utility applications.

Key Features & Specifications
  • Type: Copper compression ground rod connector
  • Conductor Size Range: 4/0 AWG to 250 kcmil stranded copper
  • Ground Rod Size: 3/4 inch
  • Material: Copper with Penetrox E oxide inhibitor
  • Direct Burial Rated for earth or concrete
  • UL Listed (UL467) and IEEE 837 compliant
  • High torque strength irreversible compression
  • Requires one crimp with UPRECRIMP58 die
  • RoHS Compliant
  • Buy America Qualified and TAA Compliant
  • Weight: 5.19 lb


Product Identification
  • UPC: 781810220757
  • GTIN: 00781810220757
