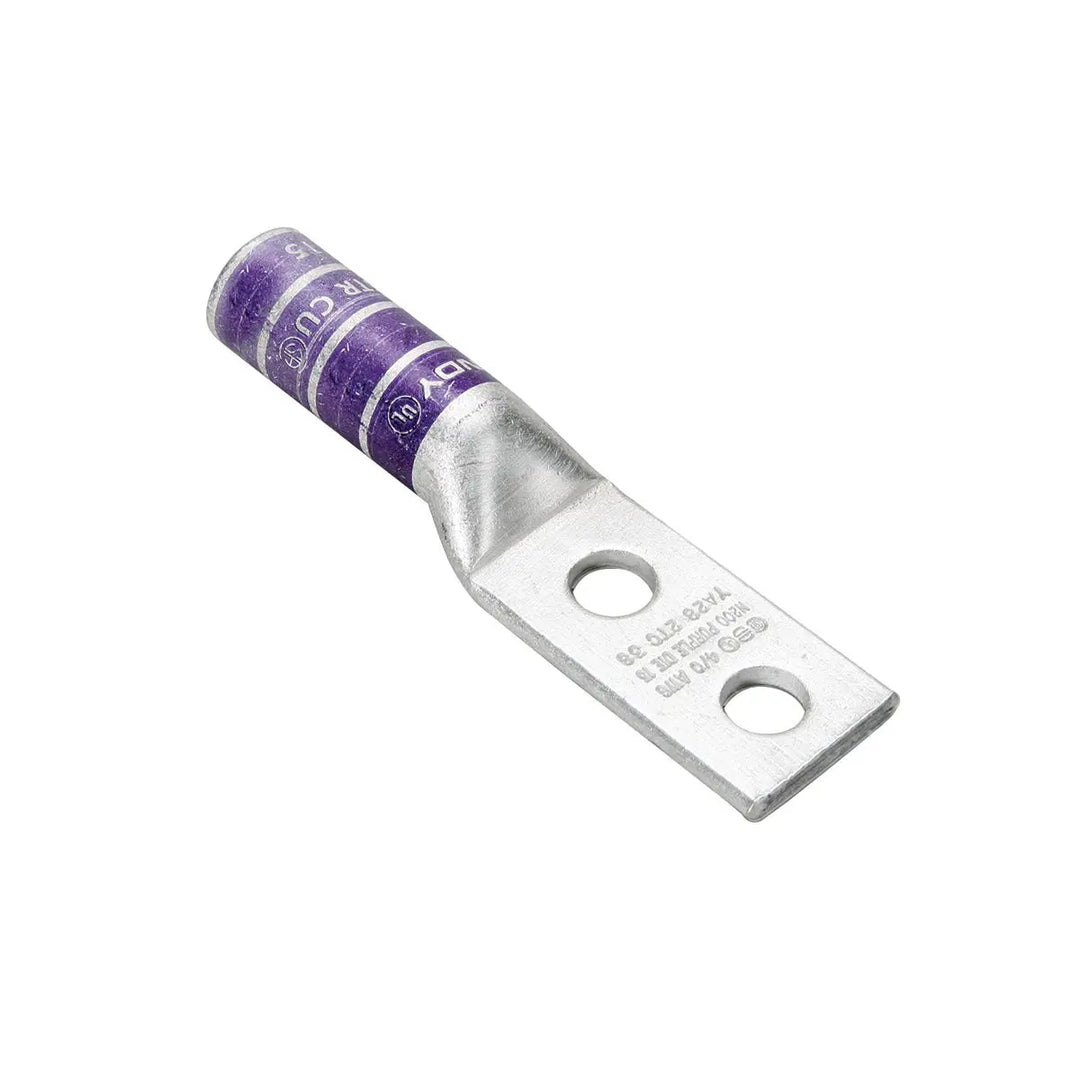

Burndy YA3C2N - Copper Compression Lug, 3 AWG, 1/2 in Stud
Burndy YA3C2N - Copper Compression Lug, 3 AWG, 1/2 in Stud

Burndy YA3C2N - Copper Compression Lug, 3 AWG, 1/2 in Stud

Burndy
Price
Save $-21.27
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Burndy YA3C2N is a copper compression lug engineered for secure termination of copper conductors in high-voltage electrical applications. This two-hole lug accommodates 3 AWG stranded or 2 AWG solid copper wire and is rated for voltages from 600 V up to 35 kV, with a maximum operating temperature of 90°C. It features a long barrel with an internal chamfer for simplified wire insertion, a 1/2 inch stud size with 1-3/4 inch hole spacing, and is tin plated for enhanced corrosion resistance. The product is UL listed to UL 486A-486B standards and is RoHS compliant, ensuring reliable performance in demanding environments. Typical applications include industrial power distribution, switchgear, and heavy equipment connections.

Key Features & Specifications
  • Type: Copper compression lug
  • Conductor Size: 3 AWG stranded / 2 AWG solid copper
  • Number of Holes: 2
  • Stud Size: 1/2 inch
  • Hole Spacing: 1-3/4 inch
  • Barrel Style: Long barrel with internal chamfer
  • Finish: Tin plated (electro-tin)
  • Voltage Rating: 600 V to 35 kV
  • Temperature Rating: 90°C
  • UL Listed to UL 486A-486B
  • Color Code: White
  • Die Index: 9
  • RoHS Compliant
  • Weight: 0.12 lb


Product Identification
  • UPC: 781810019375
