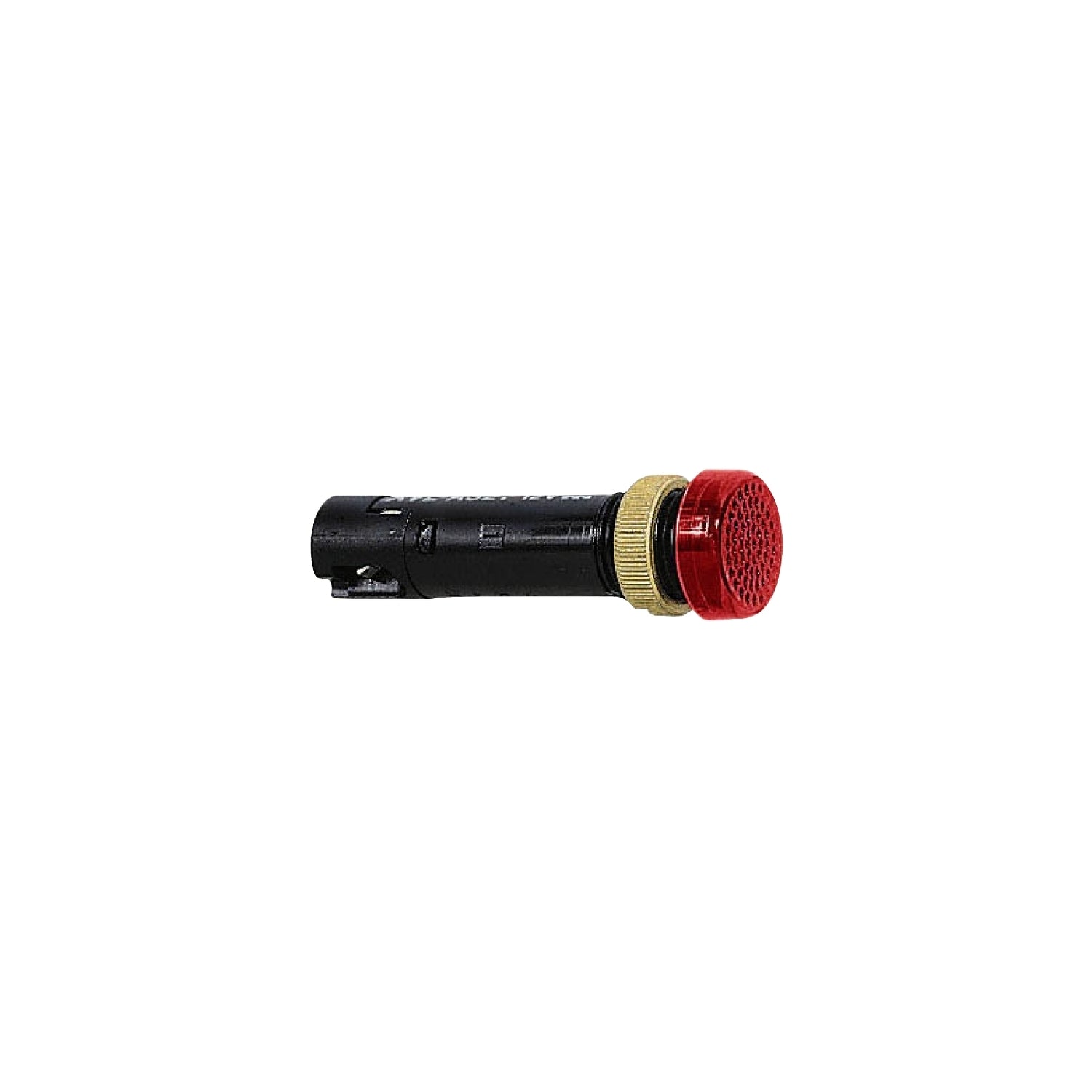

Schneider Electric XVLA334 - Red LED Pilot Light 24 VDC (12mm Panel Mount)
Schneider Electric XVLA334 - Red LED Pilot Light 24 VDC (12mm Panel Mount)

Schneider Electric XVLA334 - Red LED Pilot Light 24 VDC (12mm Panel Mount)

Schneider Electric
Price
Save $13.14
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Schneider Electric XVLA334 is a Harmony XVL series red LED pilot light designed for panel-mounted visual indication in motor control and industrial automation applications. This compact indicator operates at 24 VDC with an 18 mA amperage rating, featuring a covered LED lamp with a 100,000-hour average service life and built-in reverse polarity protection. The unit measures 0.6 in (16 mm) by 0.6 in (16 mm) by 2.008 in (51 mm) and weighs 0.015 lb, with a 12 mm diameter panel mount and threaded terminal connections. It carries CSA, EU RoHS, UL Listed, and WEEE certifications, and is constructed in Spain for reliable performance in demanding environments. Typical applications include motor control panels, industrial machinery, and process control systems requiring durable status indication.

Key Features & Specifications
  • Type: Red LED pilot light
  • Voltage Rating: 24 VDC
  • Amperage: 18 mA
  • Lens Color: Red
  • Size: 12 mm diameter
  • Mounting Type: Panel mount
  • Enclosure Type: IP40 standard, IP65 with seal
  • LED Lamp Type: Covered, long life (100,000 hr average)
  • Protection: Reverse polarity diode built-in
  • Operating Temperature: -13 to 158 deg F
  • Series: Harmony XVL
  • Terminal Type: Threaded
  • Dimensions: 0.6 in (16 mm) x 0.6 in (16 mm) x 2.008 in (51 mm) (Height x Width x Depth)
  • Weight: 0.015 lb
  • Certification: CSA, EU RoHS, UL Listed, WEEE
  • Country of Origin: Spain


Product Identification
  • UPC: 038911065168
  • GTIN: 03389110651683
