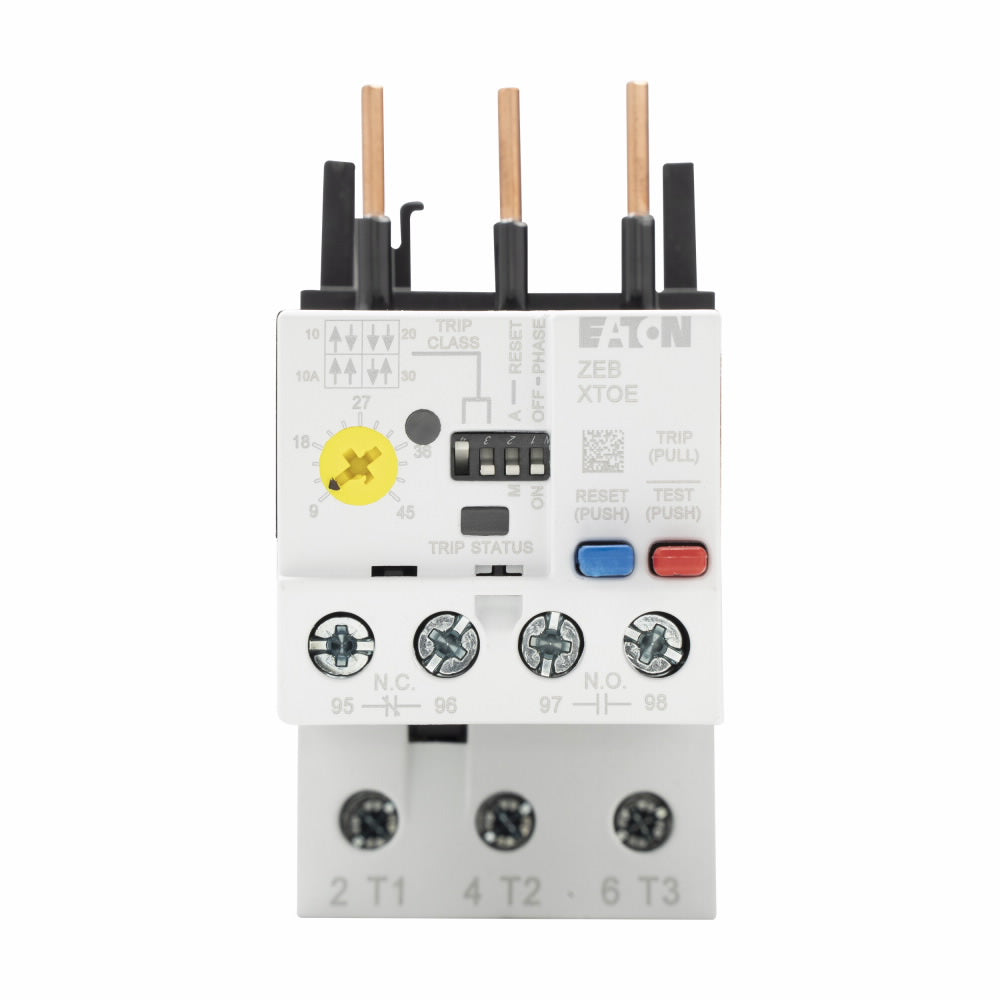

Cutler Hammer XTOE045DCS - Overload Relay 9-45A Solid State
Cutler Hammer XTOE045DCS - Overload Relay 9-45A Solid State

Cutler Hammer XTOE045DCS - Overload Relay 9-45A Solid State

Cutler Hammer
Price
Save $81.68
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer XTOE045DCS is a solid-state overload relay from the XT Series designed for motor protection in industrial control applications. It provides an adjustable current range from 9 to 45 amps, offering selectable trip classes (10A, 10, 20, 30) and phase loss protection for reliable motor safeguarding. The relay features a compact 55 mm frame size, measures 1.8 in x 4.3 in x 1.42 in (Length/Depth x Height x Width), weighs 0.87 lb, and mounts directly to XTCE contactors with one normally open and one normally closed auxiliary contact. It is certified to ATEX, CE, CSA, EN 60947, IEC 60947, RoHS, and UL standards. This overload relay is suitable for motor control centers and industrial machinery requiring precise overload protection.

Key Features & Specifications
  • Type: Solid State Overload Relay
  • Adjustable current range: 9-45 amps
  • Frame size: 55 mm
  • Mounting: Direct to contactor
  • Contact configuration: 1 NO and 1 NC auxiliary contacts
  • Selectable trip classes: 10A, 10, 20, 30
  • Phase loss protection included
  • Dimensions: 1.8 in x 4.3 in x 1.42 in (Length/Depth x Height x Width)
  • Weight: 0.87 lb
  • Certification: ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78668541653
  • GTIN: 00786685416533
