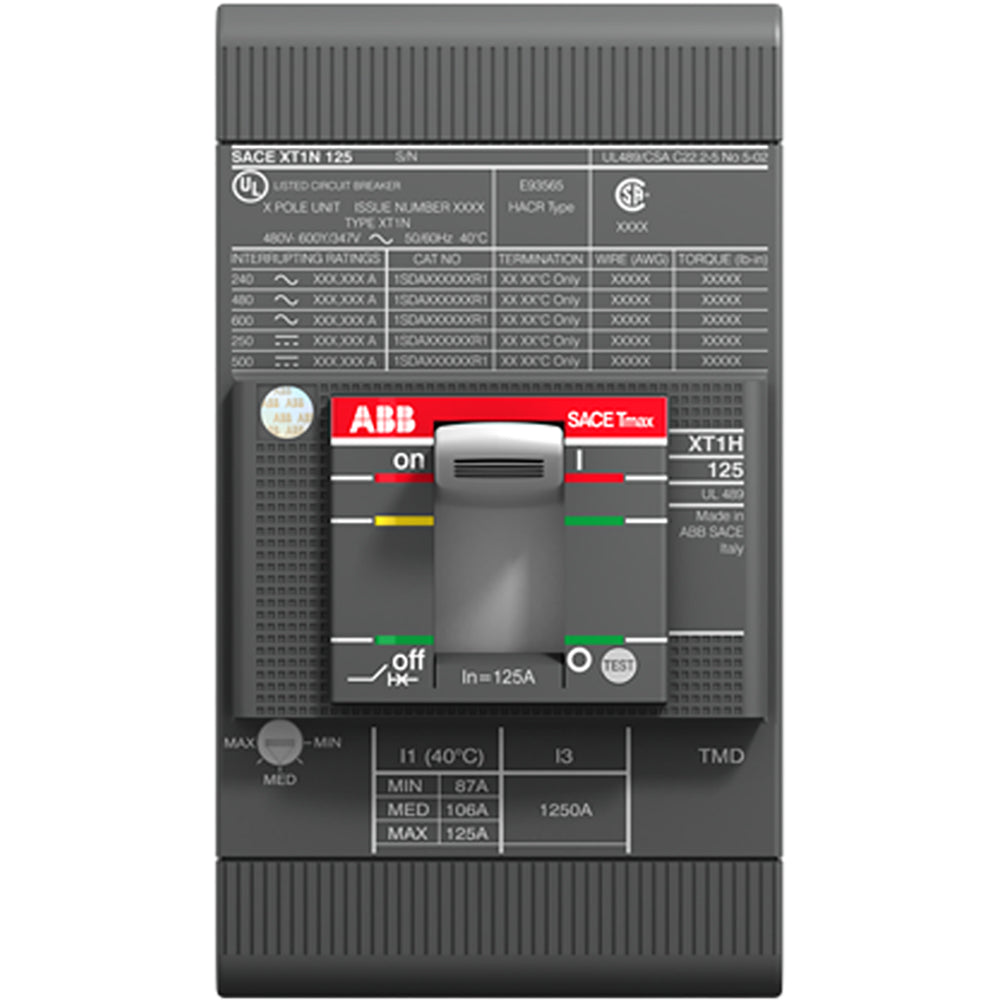

ABB XT1HU3080AFD000XXX - Molded Case 80A 3-Pole 600Y/347VAC
ABB XT1HU3080AFD000XXX - Molded Case 80A 3-Pole 600Y/347VAC

ABB XT1HU3080AFD000XXX - Molded Case 80A 3-Pole 600Y/347VAC

ABB
Price
Save $-531.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
ABB XT1HU3080AFD000XXX is a molded case circuit breaker from the SACE Tmax XT family, designed for overcurrent protection in industrial power distribution systems. This 3-pole unit is rated for 80A continuous current at 600Y/347 VAC, with an interrupting capacity of 65kA at 480V. The breaker weighs 2.5 lb and features a bolt-on connection, accepting copper or aluminum wire sizes from AWG 10 to AWG 2/0. It is certified to UL and CSA standards, ensuring compliance with North American electrical codes. Typical applications include motor control centers, panelboards, and switchboards in manufacturing, commercial, and utility environments.

Key Features & Specifications
  • Type: Molded case circuit breaker, SACE Tmax XT family, thermal-magnetic trip
  • Voltage Rating: 600Y/347 VAC
  • Current Rating: 80A
  • Poles: 3
  • Connection: Bolt-On
  • Wire Size: AWG 10 to AWG 2/0, Cu/Al
  • AIC rating: 65kA@480V
  • Phase: 3
  • Weight: 2.5 lb
  • Standards: UL, CSA
  • Certification: UL, CSA
  • Country of Origin: United States


Product Identification
  • UPC: Not provided
  • GTIN: Not provided
