Boltswitch VL469-9C - Fusible Bolted Pressure Switch 1600A@600V (200kA AIC Rating)
Boltswitch VL469-9C - Fusible Bolted Pressure Switch 1600A@600V (200kA AIC Rating)
Boltswitch VL469-9C - Fusible Bolted Pressure Switch 1600A@600V (200kA AIC Rating)
Boltswitch VL469-9C - Fusible Bolted Pressure Switch 1600A@600V (200kA AIC Rating)

Boltswitch VL469-9C - Fusible Bolted Pressure Switch 1600A@600V (200kA AIC Rating)

Boltswitch
Price
Save $-6,245.89
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

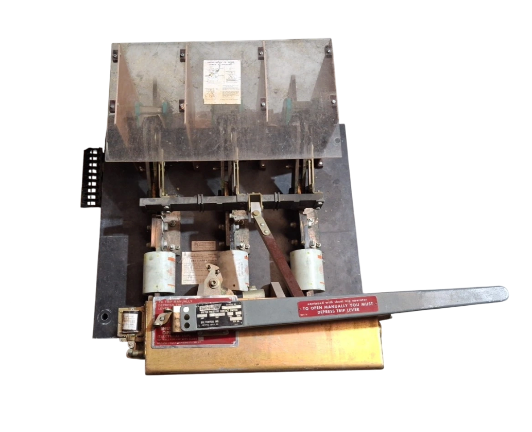

Boltswitch VL469-9C is a heavy-duty bolted pressure switch designed for high-current industrial power distribution systems. This VL Series fusible switch features a 600V AC rating with a 1600A current capacity and 200kA interrupting rating at 600V for robust circuit protection. The dual/twin configuration with 4 poles is housed in a NEMA 1 enclosure, constructed for durability in demanding environments while complying with industrial safety standards. Its 250 lb frame supports THED-compatible installations, making it suitable for three-phase power management in facilities requiring high fault current protection.

Key Features & Specifications
  • Type: VL Series bolted pressure switch, fusible design
  • Voltage Rating: 600V AC
  • Current Rating: 1600A
  • Configuration: Dual/Twin
  • Poles: 4
  • AIC Rating: 200kA@600V
  • Phase: 3
  • Fuse Class: L
  • NEMA Rating: 1
  • Compatible Frames: THED
  • Weight: 250 lb
