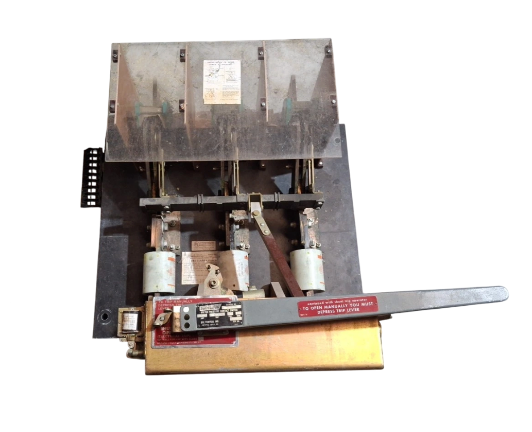

Boltswitch VL469 - Fusible Safety Switch 600VAC/1600A (200kA AIC @480V)

Boltswitch VL469 is a heavy-duty fusible safety switch designed for industrial power distribution systems requiring high fault current protection. This 600VAC-rated switch handles 1600A continuous current with a 200kA interrupting capacity at 480V, housed in a NEMA 1 enclosure weighing 250 lb for rugged applications. Its bolted pressure construction features four poles in a single configuration, compatible with TED frames and Class L fuses for secure three-phase circuit isolation. The VL Series switch meets stringent industrial safety standards for critical power control in manufacturing plants, data centers, and utility substations.

Key Features & Specifications

• Type: Fusible bolted pressure safety switch (VL Series)
• Voltage Rating: 600VAC
• Current Rating: 1600A continuous
• Configuration: Single
• Poles: 4
• AIC Rating: 200kA@480V
• Fuse Class: L
• Phase: 3
• NEMA Rating: 1
• Compatible Frames: TED
• Weight: 250 lb
• Switch Style: Fusible
• Standards: Industrial safety compliance
• Applications: Power distribution, manufacturing, utility systems
