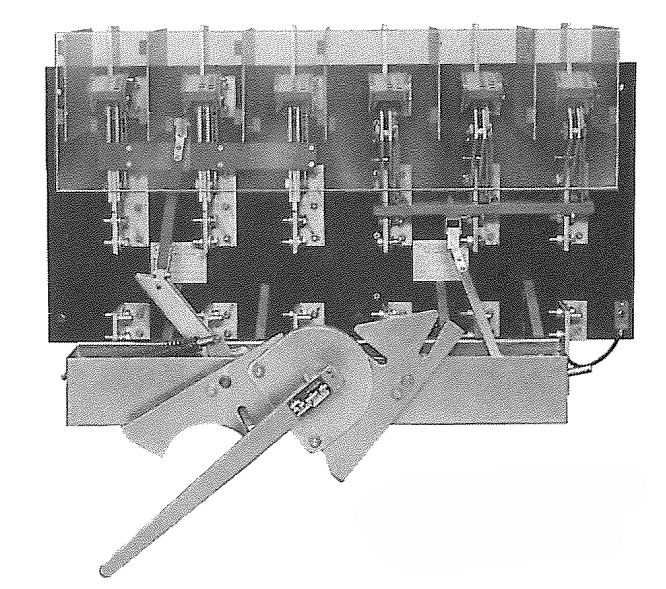

Boltswitch VL269 - Fusible Bolted Pressure Switch 600V/1600A (200kA AIC @480V)

Boltswitch VL269 is a fusible bolted pressure switch designed for high-current circuit protection in industrial power distribution systems. This single-configuration switch features a 600V AC voltage rating and 1600A current capacity, housed in a rugged NEMA 1 enclosure weighing 250 lb for durable operation. It meets industry standards with a 200kA interrupting capacity at 480V and utilizes Class L fuses for reliable fault protection. The VL269 is engineered for demanding applications including motor control centers, switchgear, and heavy machinery power management.

Key Features & Specifications

• Type: Fusible bolted pressure switch (VL Series)
• Voltage Rating: 600V AC
• Current Rating: 1600A
• Configuration: Single
• Poles: 2
• AIC Rating: 200kA@480V
• Fuse Class: L
• NEMA Rating: 1
• Phase: 1
• Weight: 250 lb
• Standards: Industrial-grade compliance
• Applications: Motor control centers, switchgear, heavy machinery

Product Identification

• GTIN: 00026715082698
