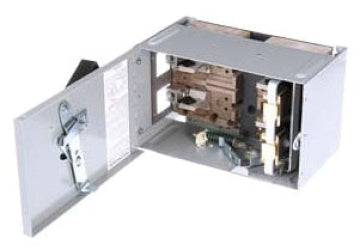

Siemens V7F2204LR is a panel-mounted safety switch designed for industrial circuit protection and isolation. This single-phase fusible switch features a 240V voltage rating and 200A current rating for robust electrical distribution applications. Constructed with Siemens' Vacu-Break technology in a NEMA 1 enclosure, the unit weighs 45 lb and provides reliable operation in demanding environments. The switch complies with industry standards for R, H, and K fuse classes while offering 200kA interrupting capacity at 240V. Typical applications include industrial power distribution, motor control centers, and main disconnect service where two-pole protection is required in FCP compatible frames.

Key Features & Specifications
  • Type: Panel-mounted safety switch with Vacu-Break technology
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA@240V
  • Switch Style: Fusible
  • Fuse Class: R, H, K
  • NEMA Rating: 1
  • Compatible Frames: FCP
  • Weight: 45 lb
  • Family: Vacu-Break
  • Type: V7F
  • Item Subcategory: Panel Mount
