Siemens V7E3233 - Fusible Safety Switch 100A 3P (240V, 200kA AIC)

Siemens
Price
Save $3,019.24
/
Title
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

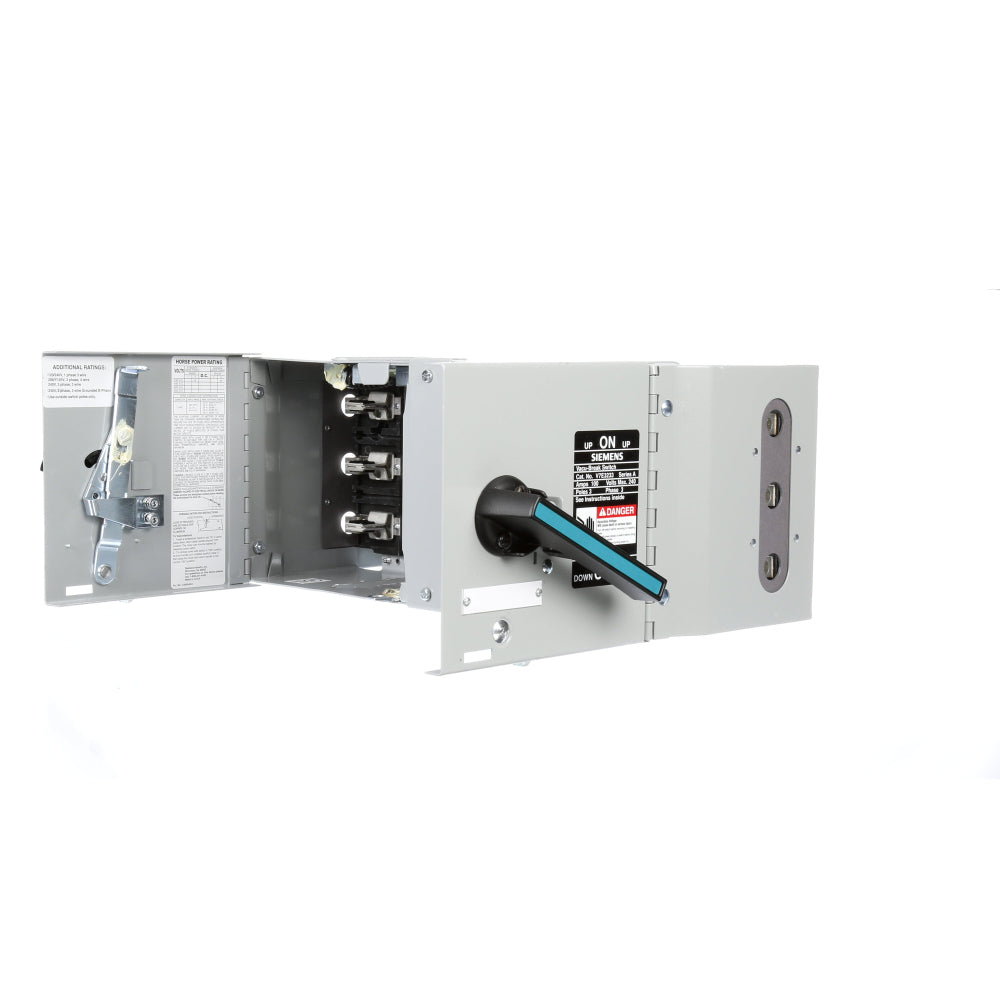

Siemens V7E3233 is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It features a 100A current rating and a 240V voltage rating, housed within a robust NEMA 1 enclosure measuring 20.866 x 10.236 x 11.024 inches and weighing 379.936 lb. The switch is constructed with a Vacu-Break design for safe arc interruption and complies with industry standards for a 200kA interrupting capacity at 240V. Its three-pole, dual/twin configuration and wide operating temperature range of -25 to 70 °C make it suitable for controlling and protecting three-phase motor circuits and feeder lines in demanding environments.

Key Features & Specifications
  • Type: V7E fusible safety switch, Vacu-Break design, panel mount
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 20.866 x 10.236 x 11.024 inches (530 x 260 x 280 mm)
  • Standards: NEMA 1 enclosure rating
  • Applications: Industrial power distribution, motor circuit protection, feeder isolation
  • Switch Type: Fusible safety switch
  • Configuration: Dual/Twin
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC rating: 200kA at 240V
  • Connection: Screw terminal
  • Poles: 3
  • Protection: Fusible
  • Wire Size: 14 to 1/0 AWG (Copper/Aluminum)
  • Compatible Frames: PLP
  • Fuse Class: R, H, K
  • Enclosure: NEMA 1
  • Country of Origin: Mexico
  • Weight: 379.936 lb


Product Identification
  • UPC: 783643231160
  • GTIN: 00783643231160
