Siemens V7E2233LR - Fusible Safety Switch 100A 240V (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

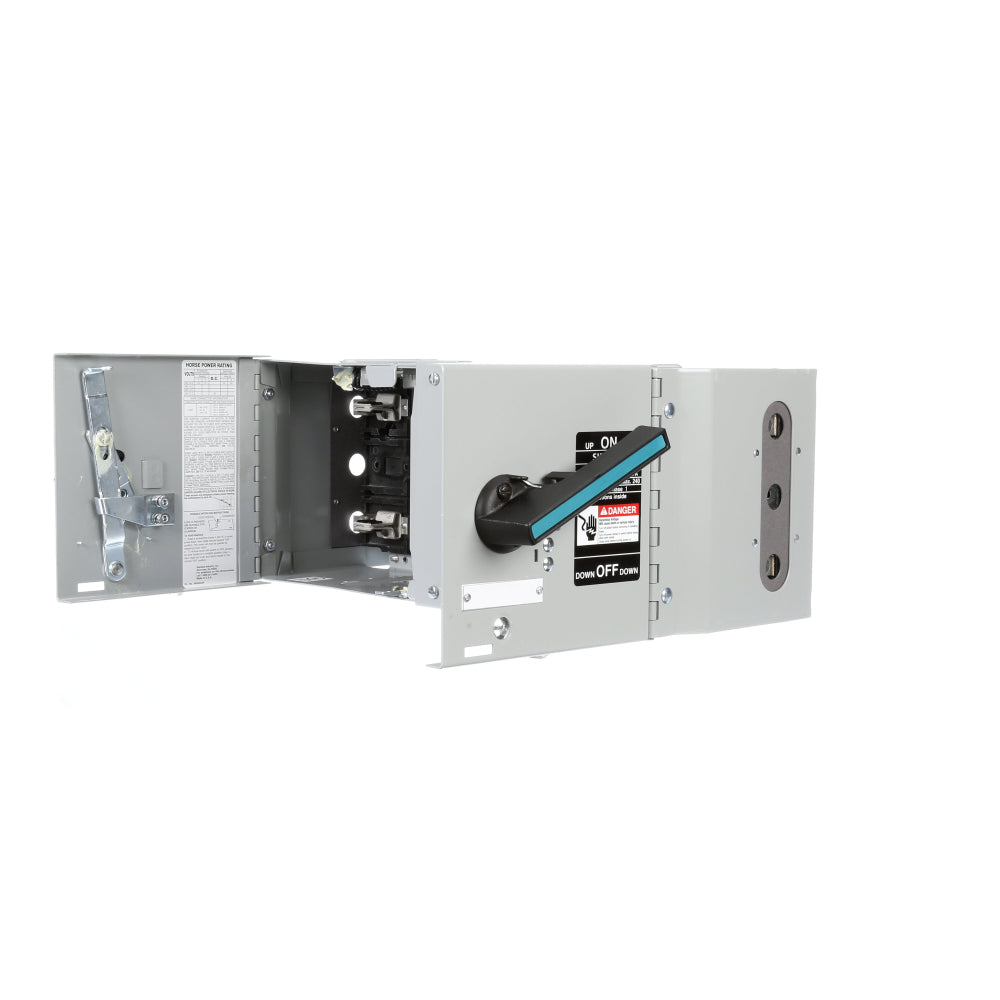

Siemens V7E2233LR is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC systems with a 100A current rating and features a robust dual/twin configuration with two poles for single-phase applications. The switch is constructed with a durable NEMA 1 enclosure measuring 20.866 x 10.63 x 10.63 inches and weighing 124.978 lb, built to withstand demanding environments. It complies with industry standards for safety switches and is part of the Siemens Vacu-Break family, offering an interrupting capacity of 200kA at 240V. Typical applications include main disconnect and branch circuit protection in industrial panels, motor control centers, and machinery where Class R, H, or K fuses are specified.

Key Features & Specifications
  • Type: V7E, Vacu-Break fusible safety switch, panel mount
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 20.866 x 10.63 x 10.63 inch
  • Weight: 124.978 lb
  • Standards: NEMA 1 enclosure rating
  • Applications: Main disconnect, branch circuit protection in industrial panels and MCCs
  • Switch Type: Fusible
  • Configuration: Dual/Twin
  • Poles: 2
  • Phase: 1
  • AIC rating: 200kA@240V
  • Fuse Class: R, H, K
  • Compatible Frames: PJP
  • Country of Origin: Mexico


Product Identification
  • UPC: 078364323276
  • GTIN: 00783643232761
