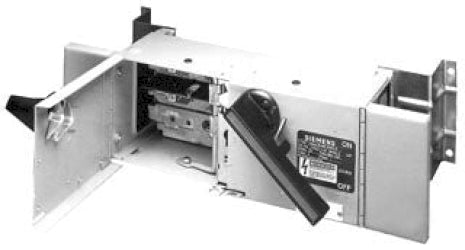

Siemens V7E2223 - Fusible Safety Switch 100A 240V (200kA AIC Vacu-Break)

Siemens V7E2223 is a panel-mounted safety switch designed for reliable circuit protection and isolation in industrial applications. This Vacu-Break series switch operates at 240V AC with a 100A current rating, providing robust electrical control in single-phase systems. The dual/twin configuration features two poles and a fusible switch style with R, H, and K fuse class compatibility, housed in a NEMA 1 enclosure weighing 37 lb. It meets industry standards with a 200kA interrupting rating at 240V and is designed for compatibility with PJP frames. Typical applications include industrial power distribution, machinery control, and electrical system maintenance where safe load breaking and circuit isolation are required.

Key Features & Specifications

• Type: Panel-mounted safety switch, Vacu-Break technology, fusible switch style
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Dual/Twin
• Poles: 2
• Phase: 1
• AIC Rating: 200kA@240V
• Fuse Class: R, H, K
• NEMA Rating: 1
• Compatible Frames: PJP
• Weight: 37 lb
• Family: Vacu-Break
• Type: V7E
• Item Subcategory: Panel Mount
• Switch Style: Fusible
