Siemens V7E2204LR - Fusible Safety Switch 200A 240V (200kA AIC)
Siemens V7E2204LR - Fusible Safety Switch 200A 240V (200kA AIC)
SIemens, ITE V7E2204LR Panel Mount Switch (Fusible) - Essential Electric Supply
SIemens, ITE V7E2204LR Panel Mount Switch (Fusible) - Essential Electric Supply
Siemens V7E2204LR - Fusible Safety Switch 200A 240V (200kA AIC)
Siemens V7E2204LR - Fusible Safety Switch 200A 240V (200kA AIC)
SIemens, ITE V7E2204LR Panel Mount Switch (Fusible) - Essential Electric Supply
SIemens, ITE V7E2204LR Panel Mount Switch (Fusible) - Essential Electric Supply

Siemens V7E2204LR - Fusible Safety Switch 200A 240V (200kA AIC)

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

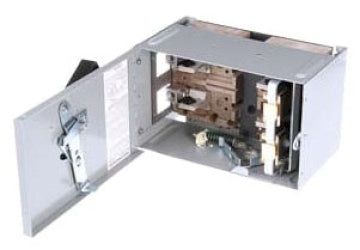

Siemens V7E2204LR is a panel-mounted, fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC systems with a 200A current capacity and features a 200kA interrupting rating at 240V for robust short-circuit protection. The switch is constructed with a durable, NEMA 1 enclosure measuring 20.866" x 10.236" x 10.63" and weighing 219.96 lb, and it is part of the Vacu-Break family for enhanced arc interruption. It complies with industry standards for fusible switches and is designed for compatibility with PJP frames. This switch is typically applied in single-phase industrial environments for main feeder and branch circuit protection where Class R, H, or K fuses are specified.

Key Features & Specifications
  • Type: Panel Mount, Fusible Safety Switch, Vacu-Break Design
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 20.866" H x 10.236" W x 10.63" D (530mm x 260mm x 270mm)
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial Main Feeder & Branch Circuit Protection
  • Switch Style: Fusible
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC rating: 200kA @ 240V
  • Protection: Compatible with Class R, H, K Fuses
  • Compatible Frames: PJP
  • Weight: 219.96 lb (99.8 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643232716
  • GTIN: 00783643232716
