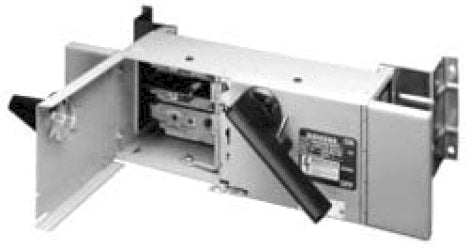

Siemens V7E2203LR - Fusible Safety Switch 100A 240V (200kA AIC NEMA 1)

Siemens V7E2203LR is a panel-mounted safety switch designed for reliable circuit protection and isolation in industrial applications. This 240V AC single-phase switch features a 100A current rating and 200kA interrupting capacity at 240V, providing robust short-circuit protection. The compact 10.236" x 20.472" x 10.63" enclosure with NEMA 1 rating houses a two-pole fusible switch mechanism compatible with Class R, H, and K fuses. Manufactured to meet industrial safety standards, this Vacu-Break series switch ensures safe operation in demanding environments. Typical applications include motor control centers, industrial machinery, and electrical distribution panels requiring secure disconnecting means.

Key Features & Specifications

• Type: Panel-mounted safety switch, fusible operation
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 10.236" x 20.472" x 10.63"
• Standards: NEMA 1 rated
• Applications: Industrial machinery, motor control centers, electrical distribution
• Switch Type: Safety disconnect
• Configuration: Single unit
• Poles: 2
• AIC rating: 200kA @ 240V
• Fuse Class: R, H, K compatible
• Phase: 1
• Compatible Frames: FAP
• Weight: 22.8 lb
• Family: Vacu-Break
• Country of Origin: United States

Product Identification

• UPC: 662643700008
• GTIN: 00662643700008
