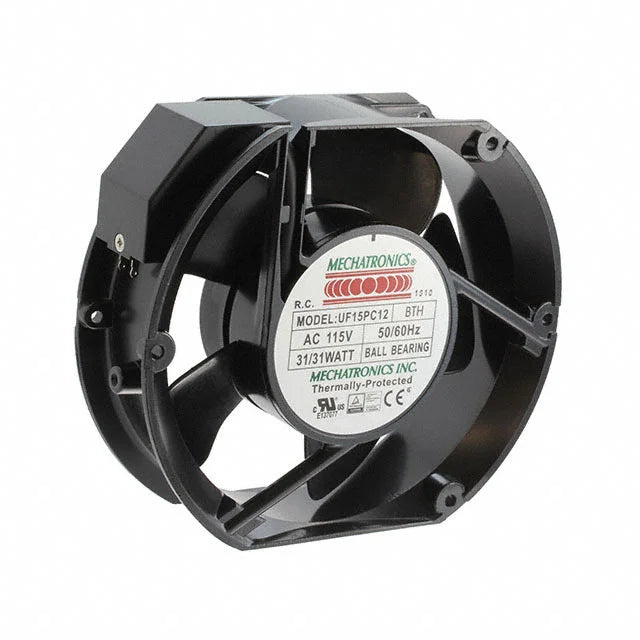

Mechatronics UF15PC12-BTH AC Axial Cooling Fan 120VAC 226 CFM | UnitedFuses.com

The Mechatronics UF15PC12-BTH is a dependable 120VAC axial cooling fan that moves serious air — 226 CFM — and is built to keep running for the long haul. Whether you're cooling an electrical enclosure, replacing a worn-out cabinet fan, or sourcing for a new installation, this fan gets the job done.

Specifications

• Part Number: UF15PC12-BTH
• Manufacturer: Mechatronics Fan Group
• Fan Type: AC Axial / Tubeaxial
• Frame Size: 172mm x 150mm x 51mm (6.77" x 5.91" x 2.00")
• Voltage: 120VAC, 50/60 Hz
• Input Power: 30W
• Current: 0.25A rated / 0.41A locked
• Fan Speed: 3,400 RPM
• Airflow: 226 CFM (6.33 m³/min)
• Sound Level: 58 dBA
• Static Pressure: 0.79" H₂O (20mm)
• Bearing Type: Ball bearing
• Motor Type: Permanent split capacitor
• Frame Material: Aluminum die-cast
• Connection: Terminal
• Operating Temp: -40°C to +70°C (-40°F to 158°F)
• Service Life: 50,000 hours (ball bearing at 25°C)

Certifications

• UL Recognized
• CE Listed
• TUV Listed
• RoHS Compliant

Where it's used

Great for electrical enclosures, control panels, HVAC equipment, industrial cabinets, and any application that needs high-volume continuous airflow. If you're not sure it fits your setup, check the frame size — 172mm x 150mm x 51mm — against your opening.

Note: AC power cord not included. This is a high-output industrial fan — not recommended for quiet home environments.
