Cutler Hammer TRS70R - TRS Fuse 70A 600V (RK5 Class 200kA AIC)

Cutler Hammer
Price
Save $1,182.21
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

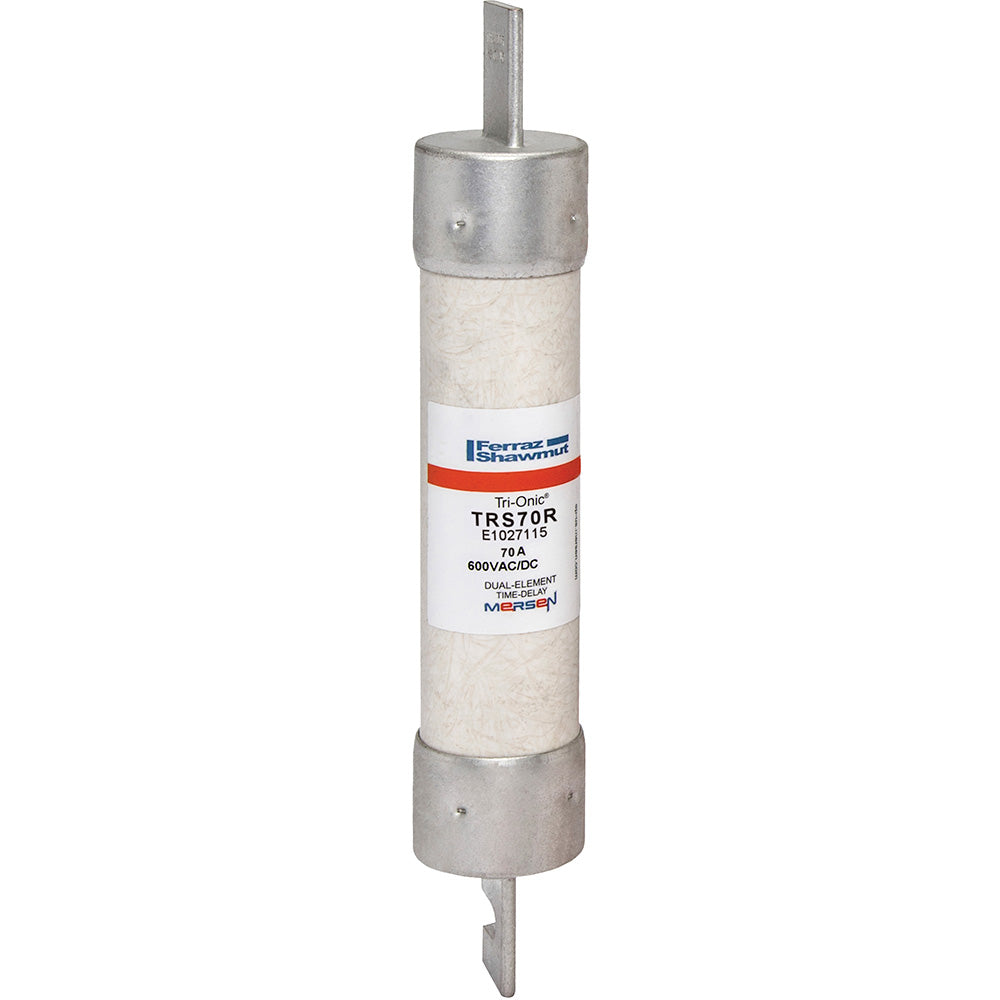

Cutler Hammer TRS70R is a low voltage current-limiting fuse designed for industrial circuit protection applications. It features a 600V AC voltage rating with a 70A current rating and provides 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse employs a single-barrel construction with RK5 class time-delay characteristics and measures 1.06 inches in diameter with a weight of 5.19 lb. This Tri-Onic series fuse meets industry standards for current-limiting performance and is UL listed for safety compliance. Typical applications include motor branch circuit protection, feeder circuit protection, and industrial control panel applications where time-delay characteristics and high interrupting ratings are required.

Key Features & Specifications
  • Type: TRS current-limiting time-delay fuse, single barrel construction
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 1.06" diameter
  • Standards: UL listed, current-limiting
  • Applications: Motor branch circuits, feeder circuits, industrial control panels
  • AIC rating: 200kA@600V
  • Class Rating: RK5
  • Barrels: 1
  • Weight: 5.19 lb
  • Family: Tri-Onic


Product Identification
  • UPC: 782001749071
  • GTIN: 00782001749071
