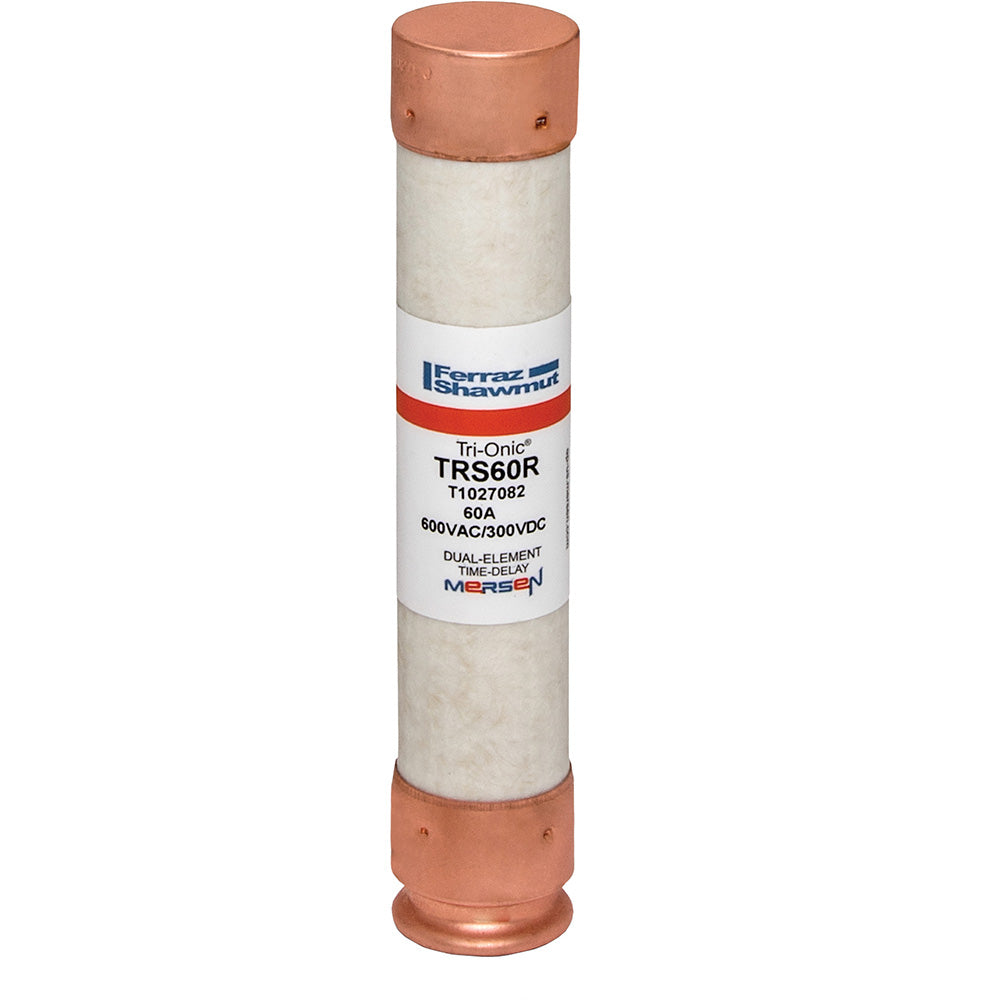

Mersen TRS60R is a low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial power systems. This RK5 class fuse operates at 600V AC with a 60A current rating and delivers 200kA interrupting capacity at rated voltage. Constructed as a single-barrel device measuring 1.06 inches in diameter and weighing 5.19 lb, it features time-delay characteristics for motor circuit protection. The TRS60R complies with industry standards for current-limiting fuses and is typically applied in motor branch circuits, feeder circuits, and industrial control panels where high fault current protection is required.
Key Features & Specifications
Type: TRS Tri-Onic current-limiting time-delay fuse, single barrel construction
Voltage Rating: 600V AC
Current Rating: 60A
Dimensions: 1.06 inches diameter
Standards: RK5 class rating
Applications: Motor branch circuits, feeder circuits, industrial control panels
AIC rating: 200kA@600V
Class Rating: RK5
Barrels: 1
Weight: 5.19 lb
Product Identification
UPC: 782001749040
GTIN: 00782001749040
