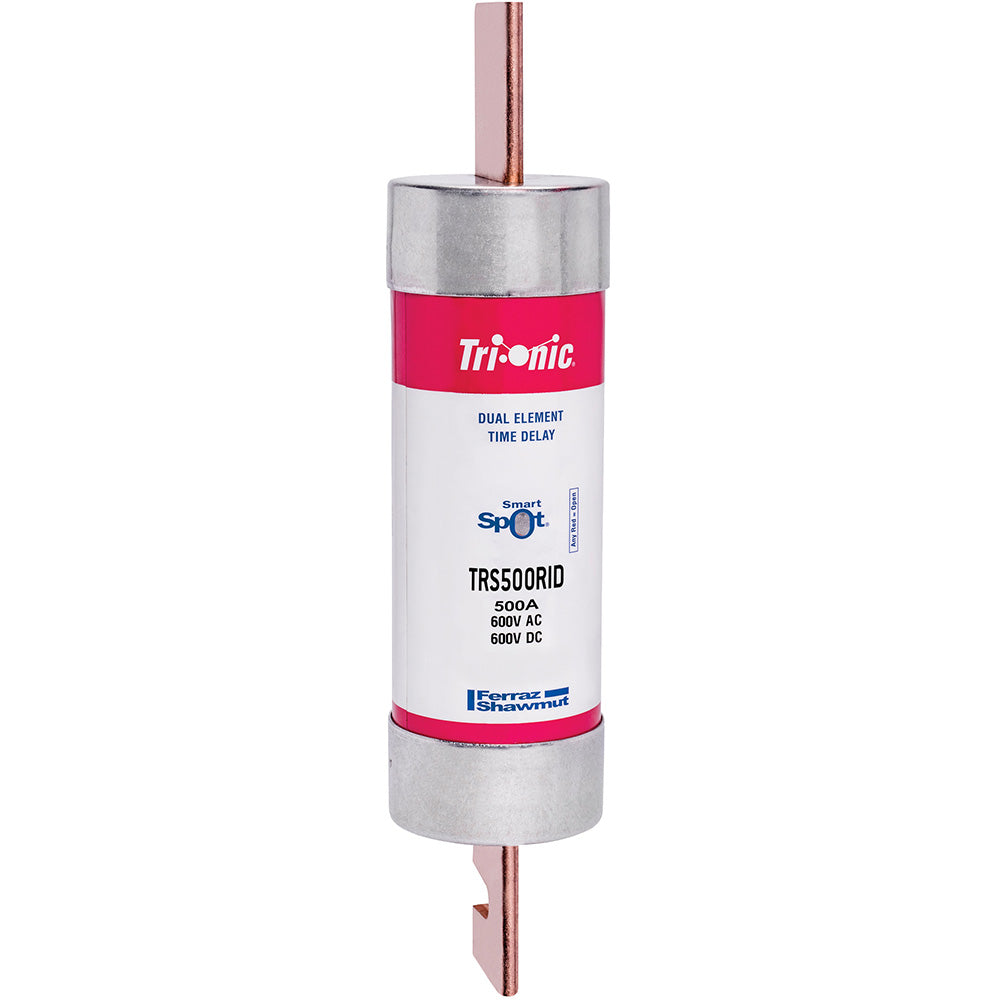

Ferraz Shawmut TRS500RID - RK5 Class Fuse 500A@600V (200kA AIC)

Ferraz Shawmut TRS500RID is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK5-class TRS fuse features a 600V AC rating with a 500A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. Its 2.56-inch diameter cylindrical body with single-barrel construction weighs 4 lb, meeting stringent industry standards for high-performance fuse applications. As part of the Tri-Onic series, it complies with UL/CSA requirements for time-delay operation and current limitation. Typical applications include motor control centers, switchgear, and transformer protection where durable, high-interrupting capacity fuses are required.

Key Features & Specifications

• Type: TRS time-delay current-limiting fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 500A
• Dimensions: 2.56" diameter
• Standards: UL/CSA listed
• Applications: Industrial power distribution, MCCs, switchgear
• Class Rating: RK5
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 4 lb

Product Identification

• UPC: 782001415297
• GTIN: 00782001415297
