Cutler Hammer TRS5-6/10R - Class RK5 Fuse 5A 600V (200kA AIC)
Cutler Hammer TRS5-6/10R - Class RK5 Fuse 5A 600V (200kA AIC)
Cutler Hammer TRS5-6/10R - Class RK5 Fuse 5A 600V (200kA AIC)
Cutler Hammer TRS5-6/10R - Class RK5 Fuse 5A 600V (200kA AIC)

Cutler Hammer TRS5-6/10R - Class RK5 Fuse 5A 600V (200kA AIC)

Cutler Hammer
Price
Save $67.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

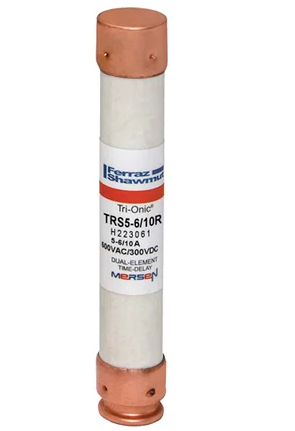

The Cutler Hammer TRS5-6/10R is a Class RK5 low-voltage time-delay fuse designed to provide reliable branch circuit and feeder protection in industrial electrical systems. It features a 5A current rating and a 600V AC voltage rating, capable of interrupting up to 200,000 amperes of fault current. The fuse is constructed as a single-barrel device with a 0.56-inch diameter and a compact design for straightforward installation in standard fuse holders. It complies with industry standards for RK5 fuses, ensuring consistent performance and safety in demanding environments. Typical applications include motor circuit protection, transformer protection, and general purpose circuits where time-delay characteristics prevent nuisance tripping from temporary overloads.

Key Features & Specifications
  • Type: Tri-Onic TRS, Time-Delay, Current-Limiting, Class RK5 Fuse
  • Voltage Rating: 600V AC
  • Current Rating: 5A
  • Dimensions: 0.56" Diameter
  • Standards: Class RK5
  • Applications: Motor Circuits, Transformer Protection, Industrial Feeder/Branch Circuits
  • AIC rating: 200kA @ 600V AC
  • Barrels: 1
  • Class Rating: RK5
  • Weight: 0.2 lb


Product Identification
  • UPC: 782001748746
  • GTIN: 00782001748746
