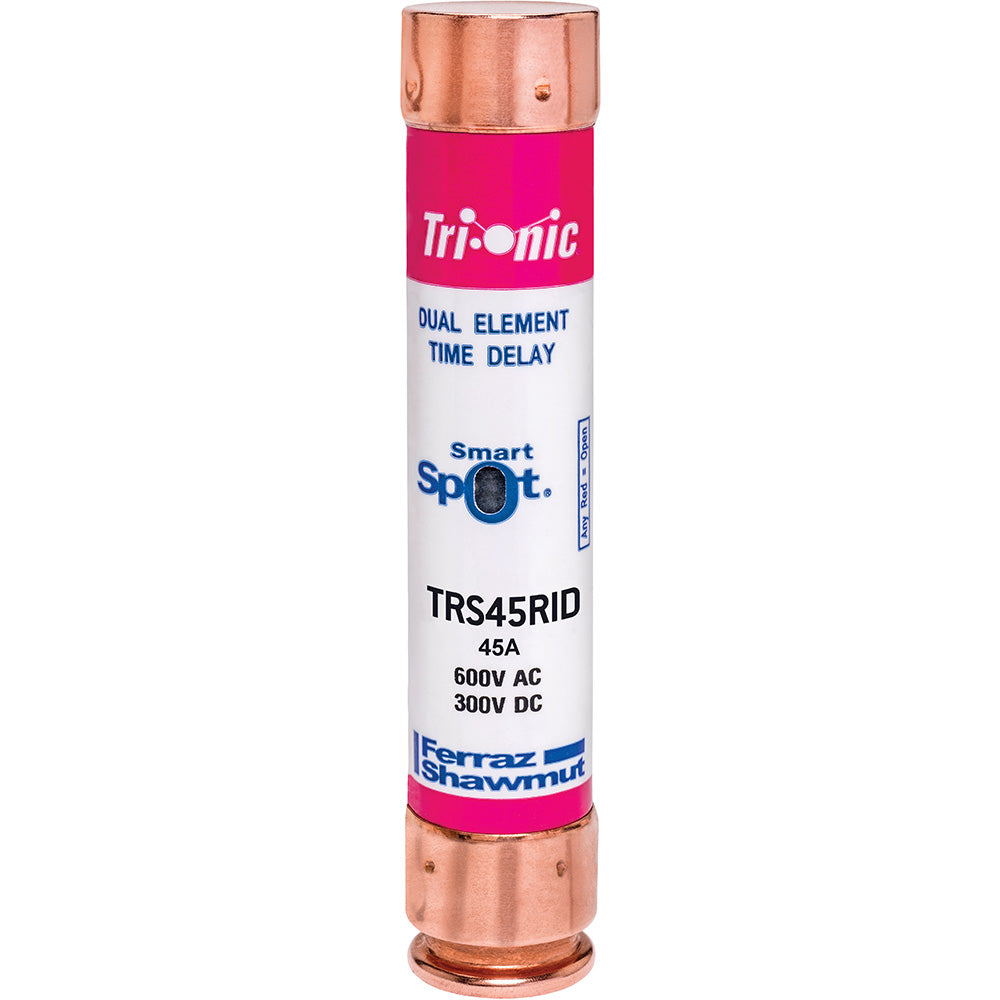

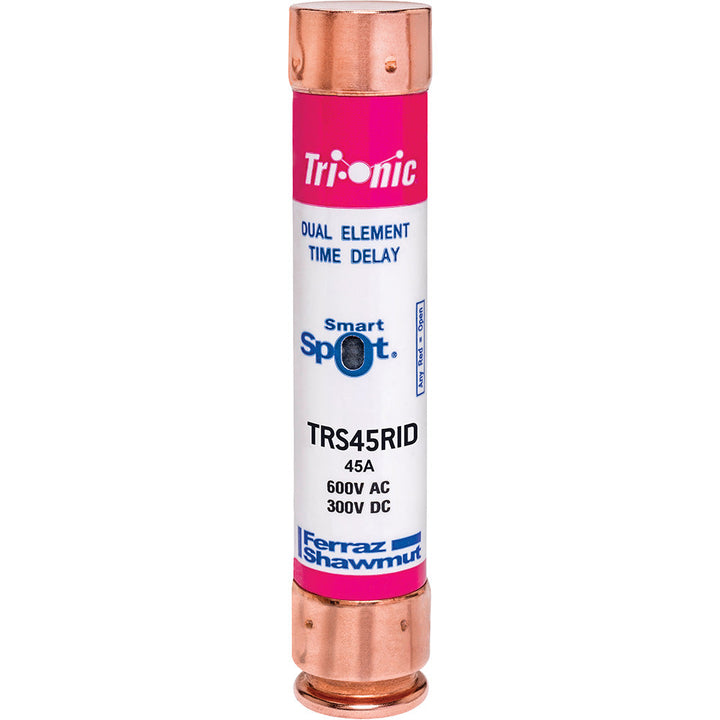

Ferraz Shawmut TRS45RID - Low Voltage Fuse 45A (600V, 200kA AIC)

Ferraz Shawmut TRS45RID is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 45A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel construction measures 0.81" in diameter with a compact form factor suitable for panel installations. Compliant with industry standards for low-voltage fuses, it provides effective protection for motor control centers, industrial control panels, and power distribution equipment.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 45A
• Dimensions: 0.81" diameter
• Standards: UL/CSA compliant
• Applications: Motor control centers, industrial panels, power distribution
• AIC rating: 200kA @ 600V
• Barrels: 1
• Class Rating: RK5

Product Identification

• UPC: 78200141511
• GTIN: 00782001415112
