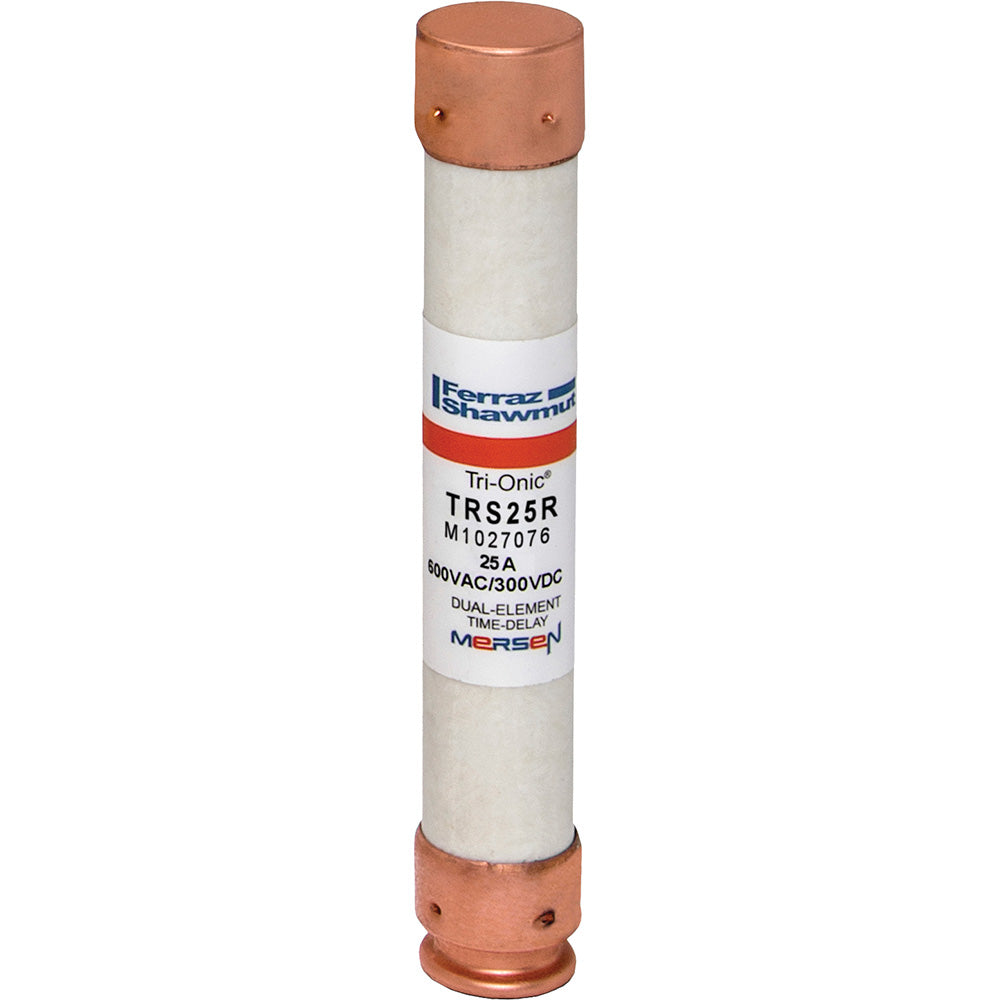

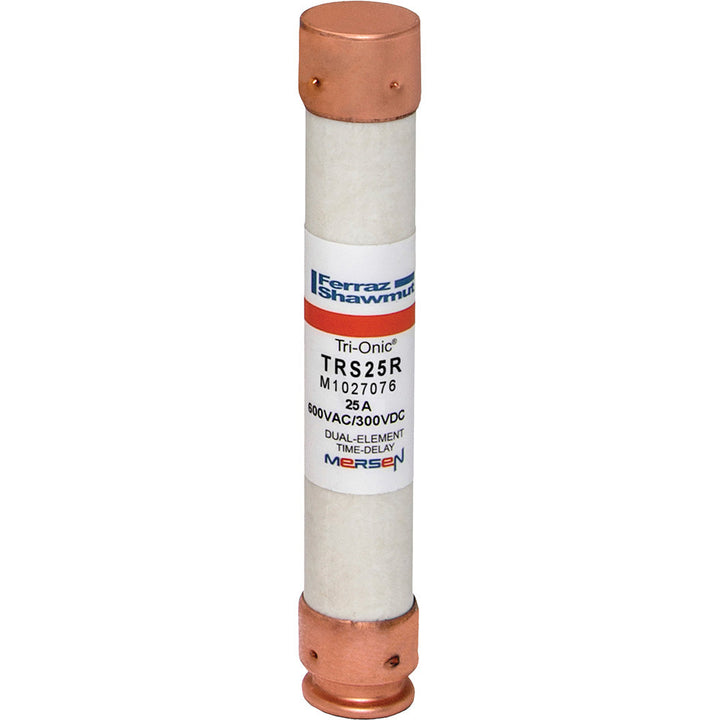

Mersen TRS25R - TRS Fuse 25A 600V (RK5 Class 200kA AIC)

Mersen
Price
Save $677.47
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen TRS25R is a low-voltage current-limiting fuse designed for industrial circuit protection applications. This RK5 class fuse features a 600V AC rating with a 25A current rating and provides 200kA interrupting capacity at 600V for reliable short-circuit protection. The single-barrel construction measures 0.56 inches in diameter and weighs 5.19 lb, built with time-delay characteristics to handle motor starting currents and temporary overloads. As part of the Tri-Onic family, it meets industry standards for current-limiting fuses in electrical distribution systems. Typical applications include motor branch circuits, transformers, and industrial control panels where coordinated protection is required.

Key Features & Specifications
  • Type: TRS current-limiting time-delay fuse, single barrel construction
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Dimensions: 0.56 inches diameter
  • Standards: RK5 class rating
  • Applications: Motor circuits, transformers, industrial control panels
  • AIC rating: 200kA@600V
  • Class Rating: RK5
  • Barrels: 1
  • Weight: 5.19 lb
  • Family: Tri-Onic


Product Identification
  • UPC: 782001748852
  • GTIN: 00782001748852
