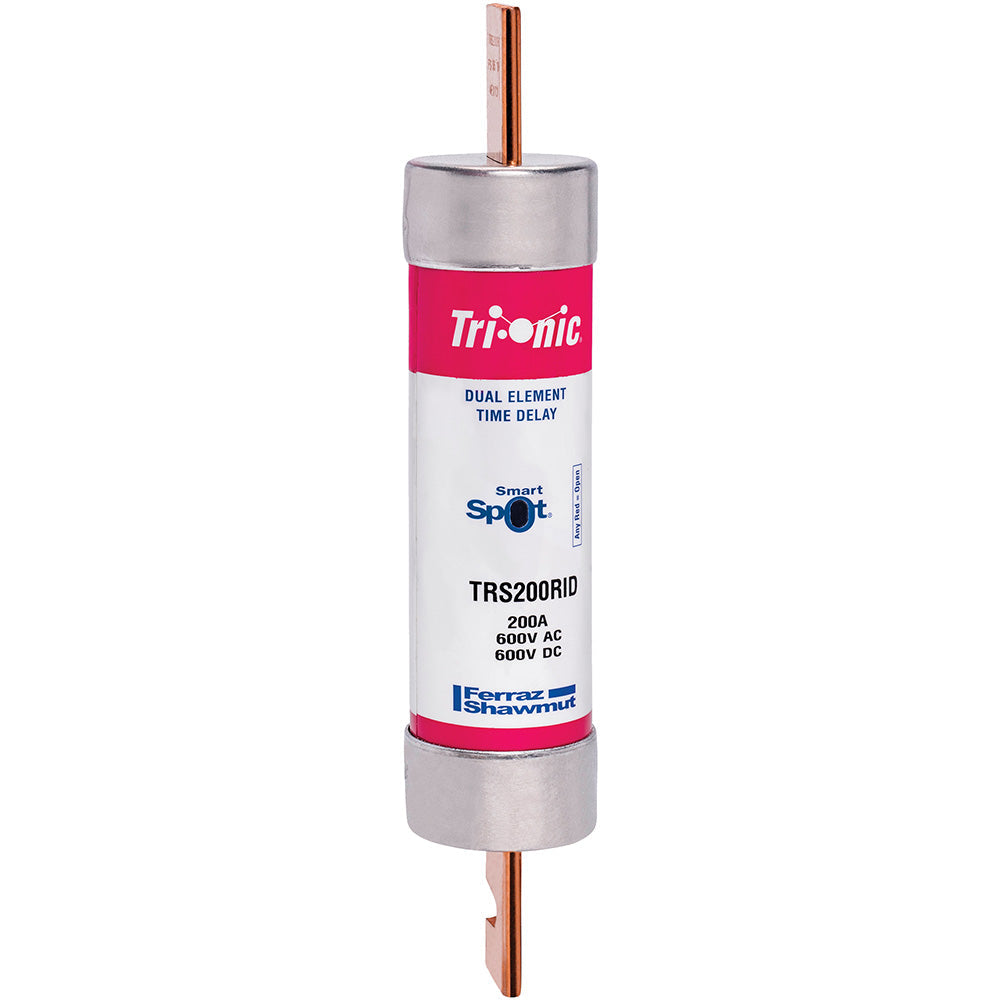

Ferraz Shawmut TRS200RID - RK5 Class Fuse 200A 600V (200kA AIC)

Ferraz Shawmut TRS200RID is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK5-class TRS fuse features a 600V AC rating with a 200A current capacity and 200kA interrupting rating at 600V, housed in a durable 1.56-inch diameter single-barrel construction. The Tri-Onic series fuse meets stringent industry standards for overcurrent protection with its time-delay characteristics and current-limiting design. Typical applications include motor branch circuits, transformer protection, and feeder circuits where high fault current interruption is required.

Key Features & Specifications

• Type: TRS time-delay current-limiting fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 1.56" diameter
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@600V
• Class Rating: RK5
• Barrels: 1
• Weight: 1 lb
• Family: Tri-Onic

Product Identification

• UPC: 782001415228
• GTIN: 00782001415228
