Cutler Hammer TRS200R - Class RK5 Fuse 200A 600V (200kA AIC)

Price
Regular price $65.01
Regular price $487.21 Sale price $65.01
Save $422.20
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

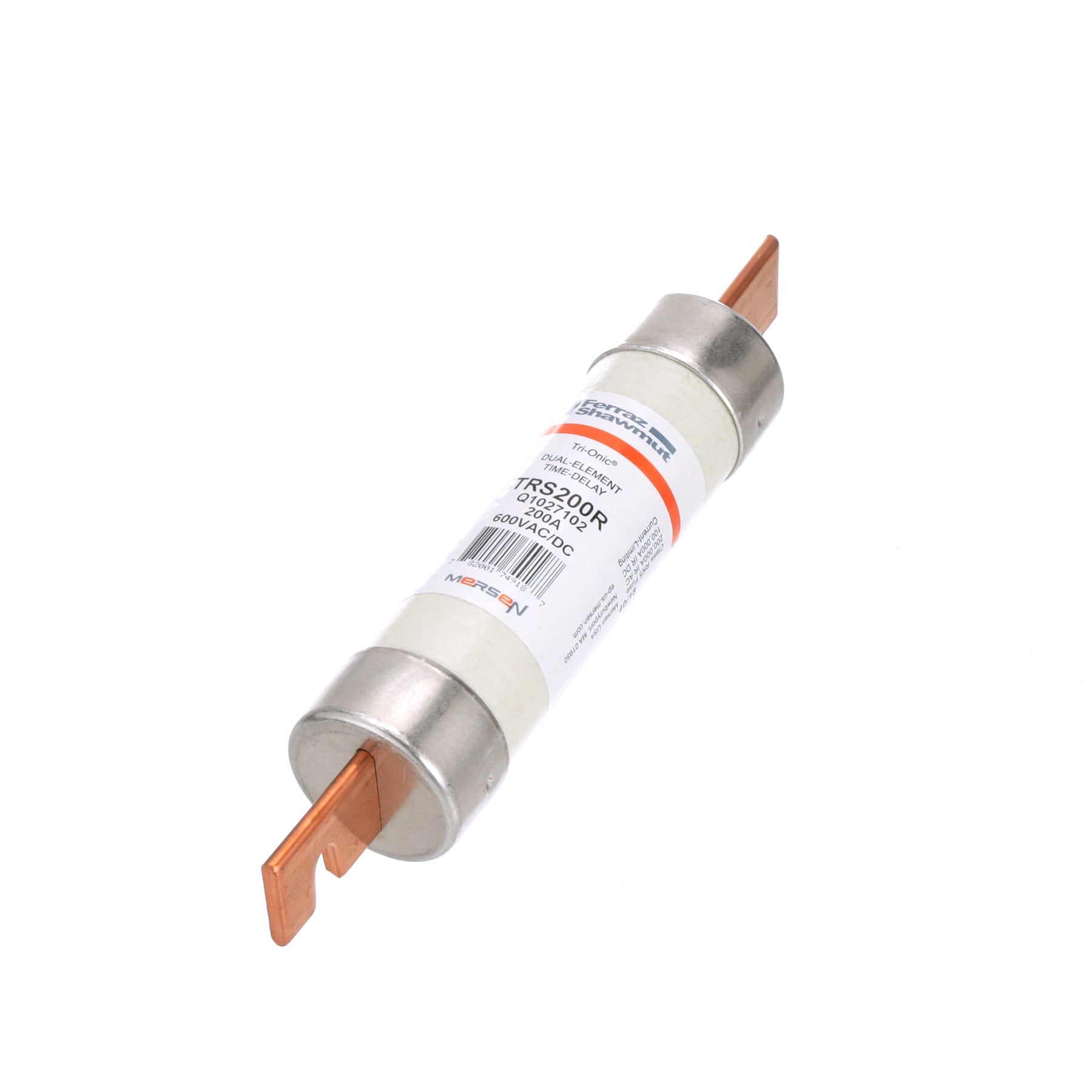

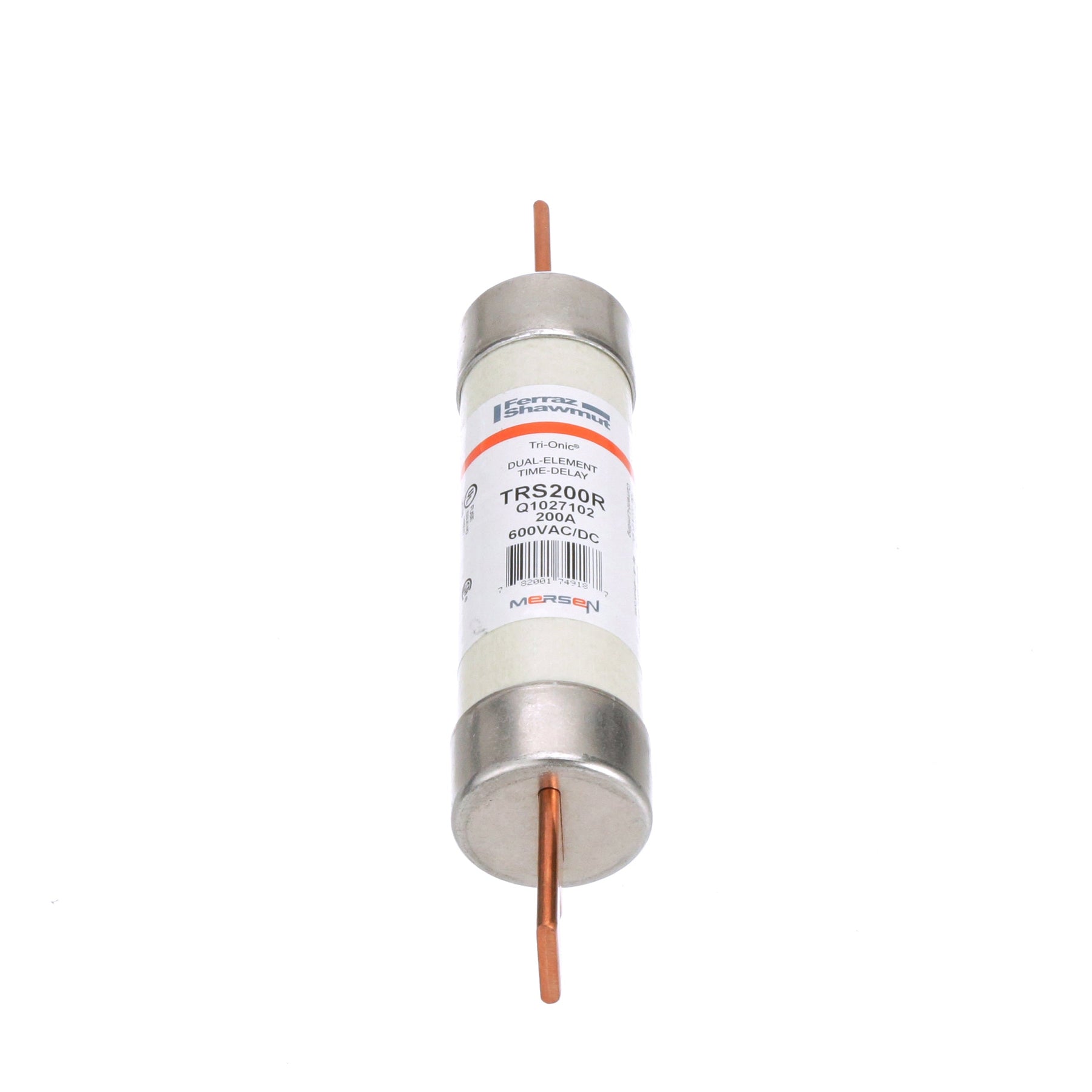

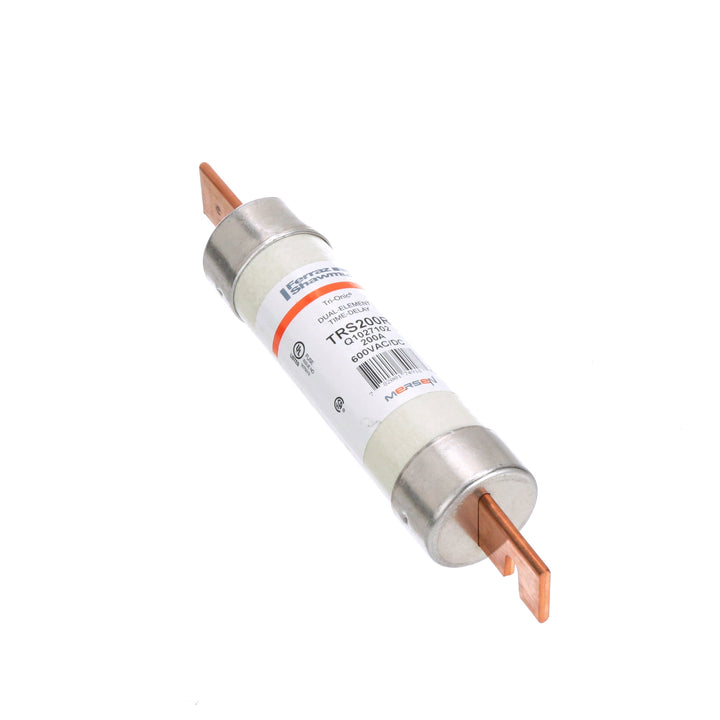

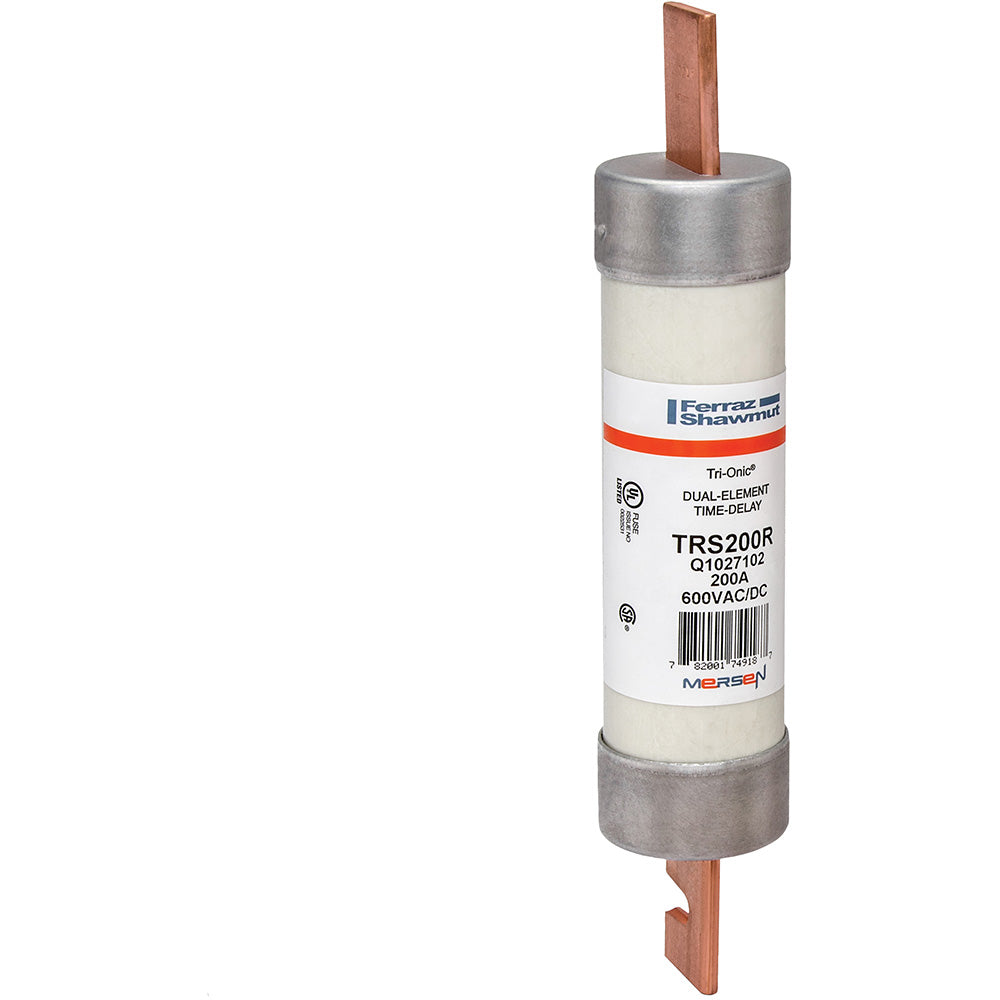

The Cutler Hammer TRS200R is a Class RK5 low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 200A current rating and 600V voltage rating with an impressive 200kA interrupting capacity at 600VAC for reliable fault protection. The fuse construction utilizes a single-barrel design with 1.56-inch diameter and incorporates time-delay characteristics to prevent nuisance tripping from motor starting currents. This Tri-Onic series fuse meets industry standards for current-limiting performance and is UL listed for safety compliance. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high-interrupting capacity and selective coordination are required.

Key Features & Specifications
  • Type: Class RK5 current-limiting time-delay fuse, single barrel
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 1.56" diameter
  • Standards: UL listed, current-limiting
  • Applications: Motor circuits, feeder protection, industrial control panels
  • AIC rating: 200kA@600V
  • Class Rating: RK5
  • Barrels: 1
  • Family: Tri-Onic
  • Item Subcategory: Low Voltage Fuse
  • Weight: 1 lb


Product Identification
  • UPC: 782001749187
  • GTIN: 00782001749187
