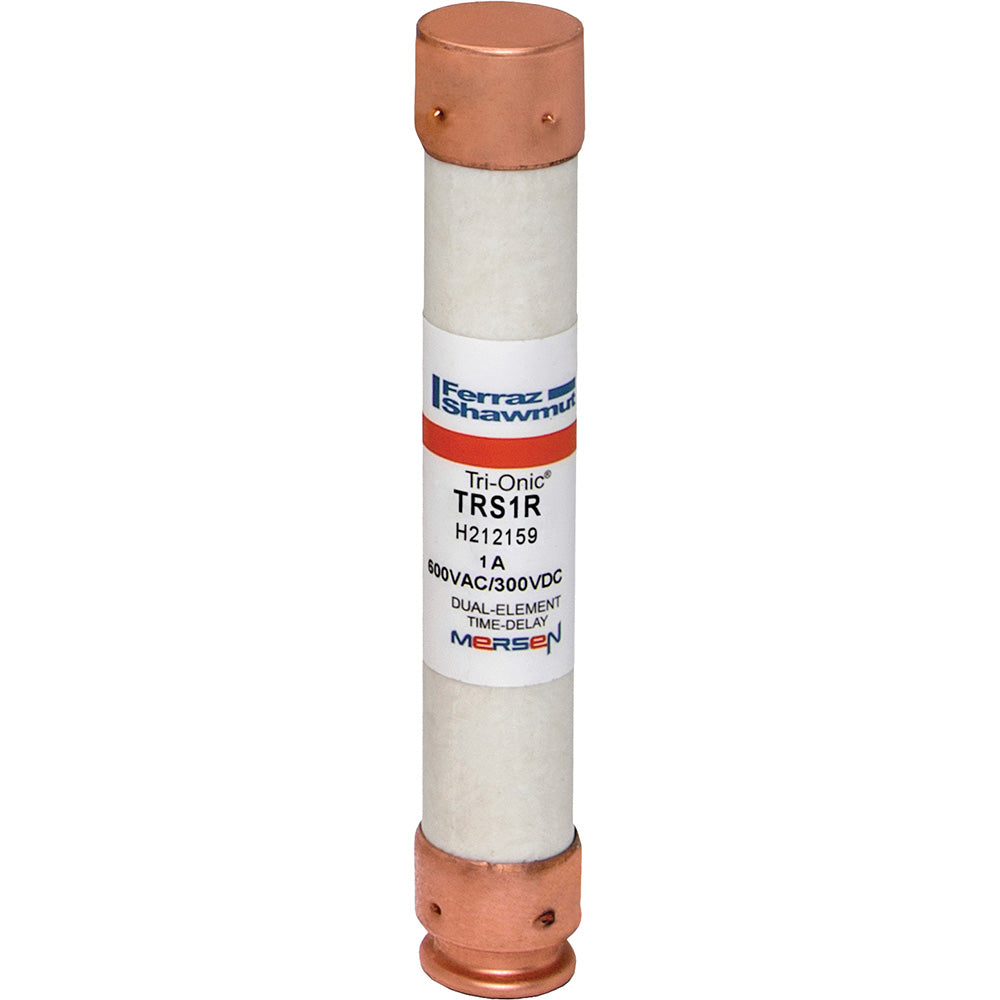

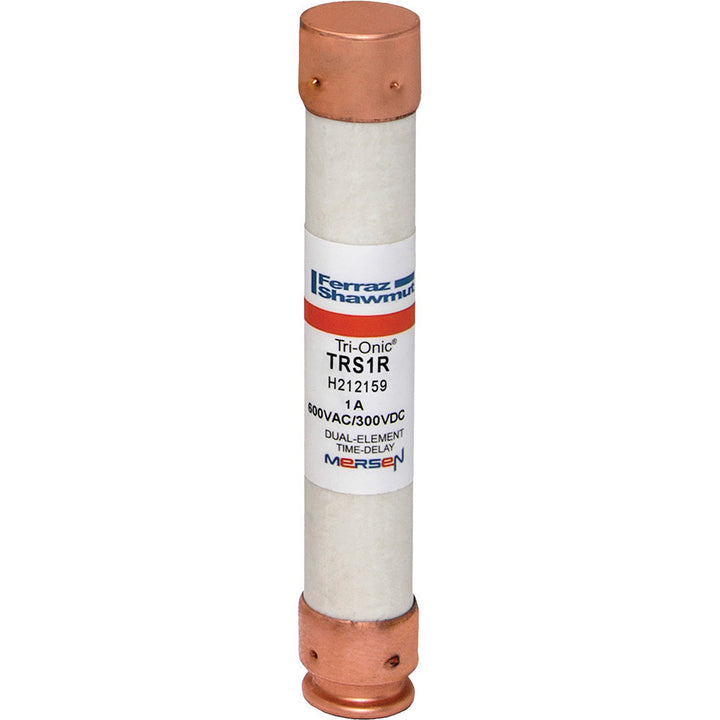

Mersen TRS1R - TRS-R Series Fuse 1A 600V (200kA AIC RK5 Class)

Mersen TRS1R is a low-voltage current-limiting fuse from the Tri-Onic TRS-R Series, designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 1A current capacity and 200kA interrupting rating at 600V, housed in a compact 0.56-inch diameter, single-barrel RK5 class package weighing 0.2 lb. The fuse meets industry standards for time-delay protection with its sand-filled construction and silver element design, suitable for motor branch circuits, transformers, and power distribution panels where high fault current interruption is critical.

Key Features & Specifications

• Type: TRS-R Series time-delay current-limiting fuse (sand-filled, silver element)
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 0.56" diameter
• Standards: UL/CSA Listed RK5 class
• Applications: Motor circuits, transformers, power distribution
• Class Rating: RK5
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 0.2 lb

Product Identification

• UPC: 782001748586
• GTIN: 00782001748586
