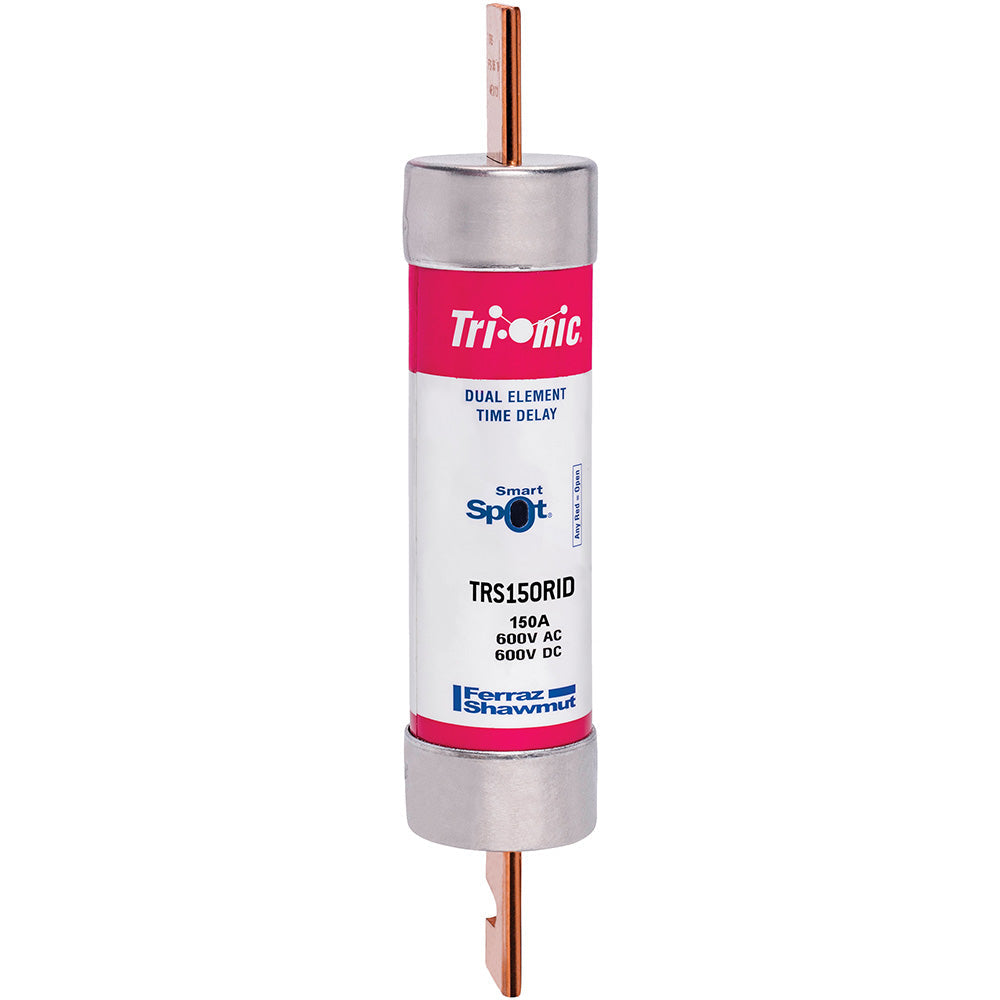

Ferraz Shawmut TRS150RID - Low Voltage Fuse 150A (200kA@600V Interrupting Capacity)

Ferraz Shawmut TRS150RID is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This RK5-class fuse features a 600V AC rating with a 150A current capacity and 200kA interrupting rating at 600V, housed in a compact 1.56-inch diameter single-barrel design. Constructed with precision-engineered current-limiting elements, it provides reliable short-circuit protection while meeting stringent industry standards for electrical safety. The fuse is UL-recognized and CSA-certified for use in motor control centers, switchgear, and other demanding applications requiring high interrupting capacity.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 150A
• Dimensions: 1.56" diameter
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor control centers, switchgear
• AIC rating: 200kA@600V
• Barrels: 1
• Class Rating: RK5
• Weight: 1 lb

Product Identification

• UPC: 78200141520
• GTIN: 00782001415204
