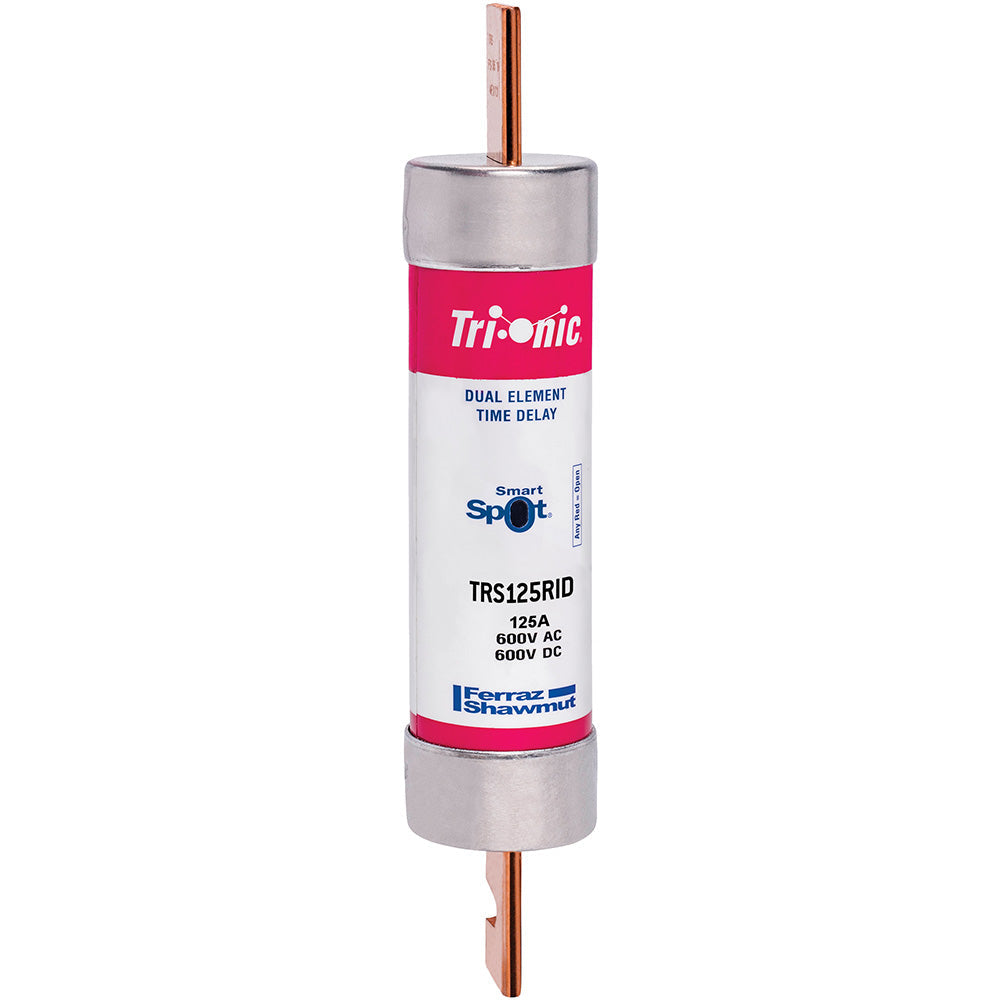

Ferraz Shawmut TRS125RID - RK5 Time-Delay Fuse 125A@600V (200kA AIC)

Ferraz Shawmut TRS125RID is a low-voltage RK5 time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 125A current capacity and 200kA interrupting rating, housed in a durable 1.56-inch diameter single-barrel construction. The UL/CSA certified fuse meets stringent safety standards with its current-limiting RK5 classification, providing reliable overload and short-circuit protection. Typical applications include motor control centers, transformers, and power distribution equipment requiring high fault current interruption.

Key Features & Specifications

• Type: RK5 time-delay fuse with current-limiting protection
• Voltage Rating: 600V AC
• Current Rating: 125A
• Dimensions: 1.56" diameter
• Standards: UL 248, CSA C22.2
• Applications: Industrial power distribution, MCCs, transformers
• Class Rating: RK5
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 78200141519
• GTIN: 00782001415198
