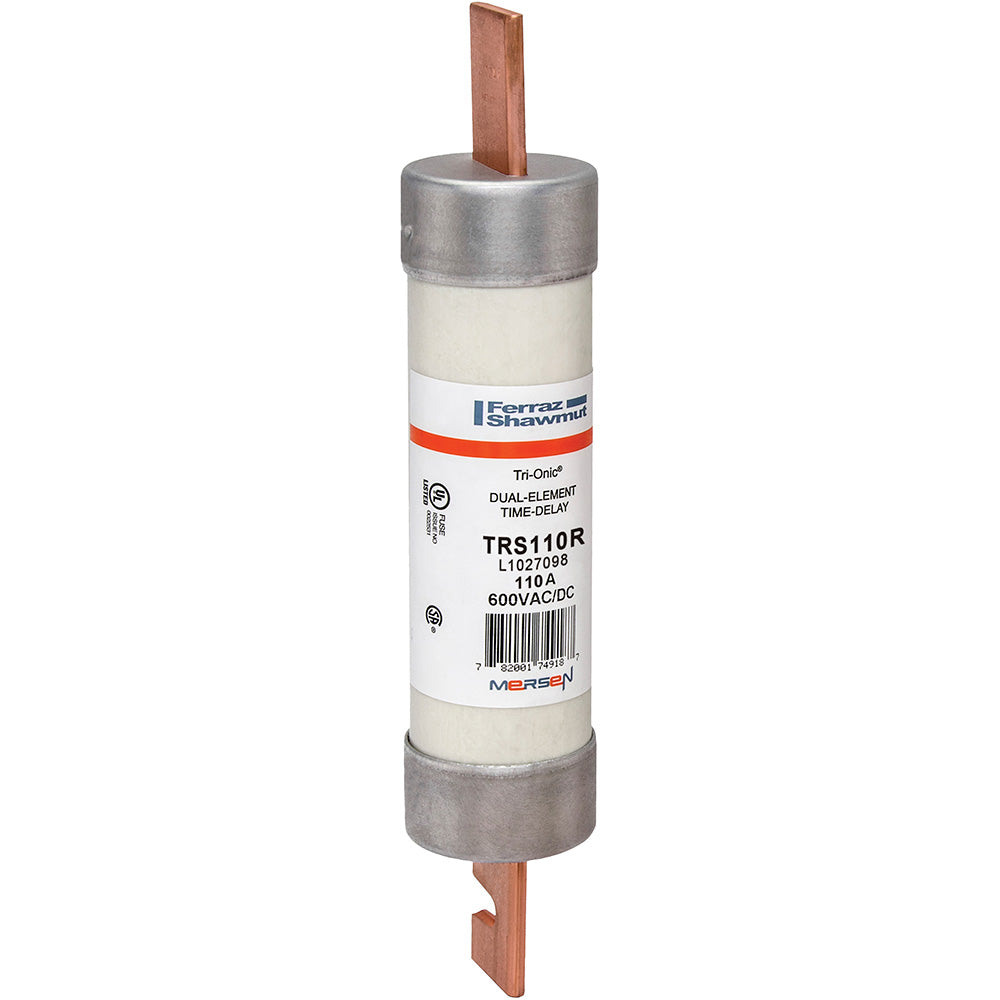

Mersen TRS110R - TRS Fuse 110A (RK5 Class 600V)

Mersen TRS110R is a low-voltage current-limiting fuse designed for industrial circuit protection applications. This RK5 class fuse features a 110A current rating and 600V voltage rating with a high interrupting capacity of 200kA at 600VAC. The single-barrel construction measures 1.56 inches in diameter and weighs 5.19 lb, utilizing time-delay characteristics for motor circuit protection. Compliant with industry standards for RK5 fuses, this Tri-Onic family device provides reliable overcurrent protection in industrial power distribution systems, motor control centers, and branch circuit applications where high fault current interruption is required.

Key Features & Specifications

• Type: TRS current-limiting time-delay fuse, RK5 class
• Voltage Rating: 600V AC
• Current Rating: 110A
• Dimensions: 1.56" diameter
• Standards: RK5 class compliance
• Applications: Industrial power distribution, motor protection, branch circuits
• AIC rating: 200kA@600V
• Barrels: 1
• Class Rating: RK5
• Family: Tri-Onic
• Weight: 5.19 lb

Product Identification

• UPC: 782001749149
• GTIN: 00782001749149
