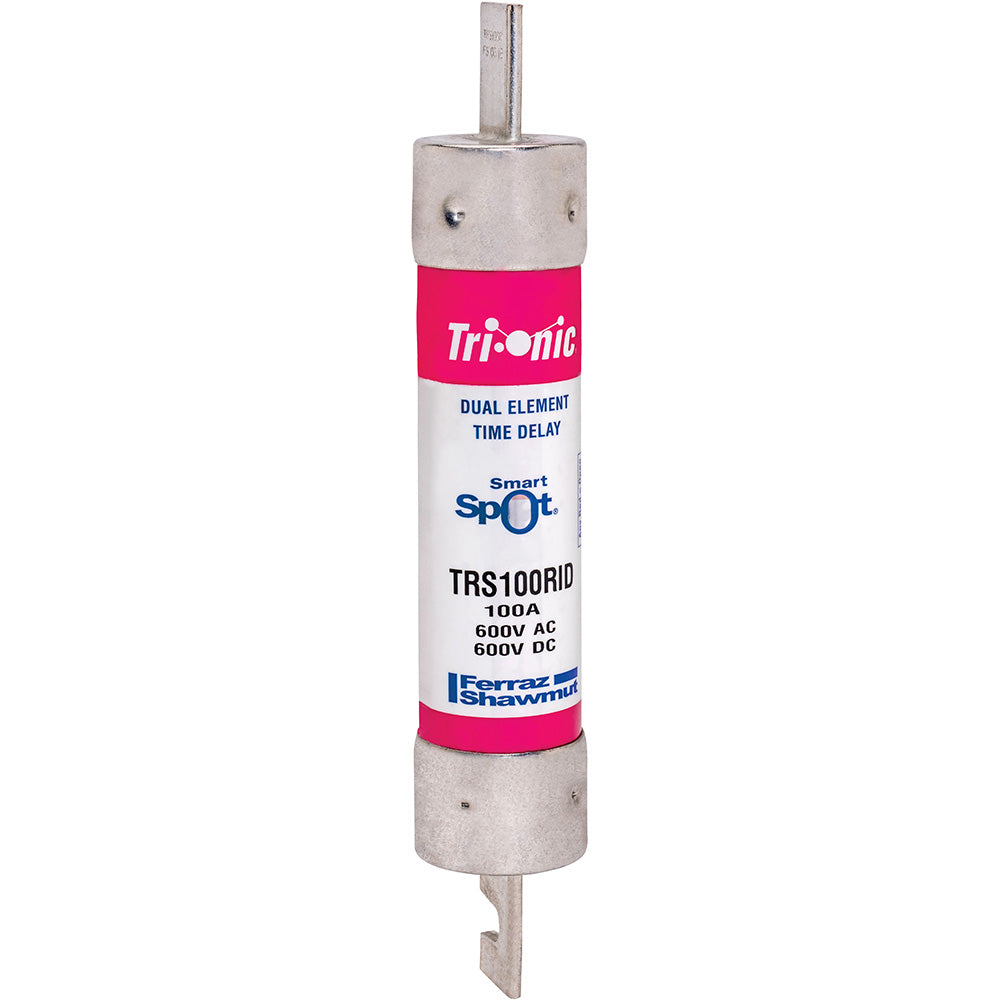

Ferraz Shawmut TRS100RID - Low Voltage Fuse 100A (200kA@600V RK5 Class)

Ferraz Shawmut TRS100RID is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 100A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel construction measures 1.06" in diameter with a compact form factor for space-efficient panel installation. Compliant with UL/CSA standards, it provides selective coordination in motor control centers, switchgear, and power distribution equipment where high fault current protection is critical.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 1.06" diameter single-barrel design
• Standards: UL/CSA compliant
• Applications: Motor control centers, switchgear, power distribution
• AIC rating: 200kA@600V
• Class Rating: RK5

Product Identification

• UPC: 78200141517
• GTIN: 00782001415174
