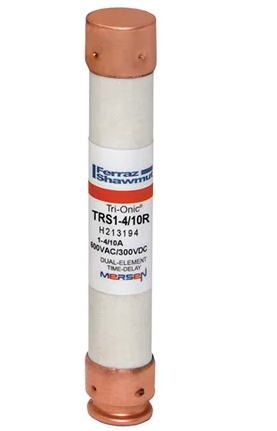

Ferraz Shawmut TRS1-4/10R - RK5 Class Fuse 1A 600V (200kA AIC)

Ferraz Shawmut TRS1-4/10R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class TRS fuse features a 600V AC rating with a 1A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The compact 0.56-inch diameter single-barrel design weighs 0.2 lb, constructed with time-delay characteristics for motor circuit applications. It complies with industry standards for current-limiting fuses, suitable for protecting transformers, motor starters, and branch circuits where high fault currents may occur.

Key Features & Specifications

• Type: Tri-Onic TRS time-delay current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 0.56" diameter
• Standards: RK5 class rating
• Applications: Motor circuits, transformers, branch circuit protection
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 0.2 lb

Product Identification

• UPC: 782001748616
• GTIN: 00782001748616
