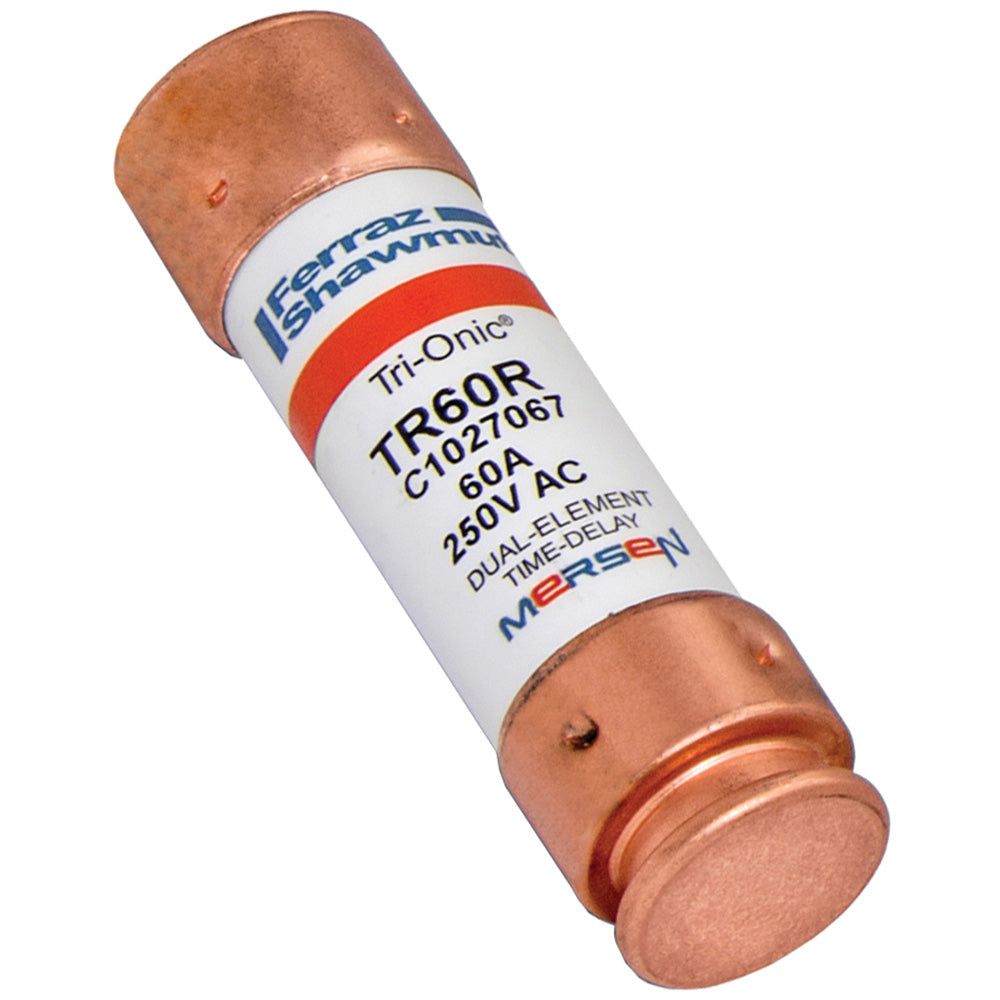

Mersen TR60R - TR Series Fuse 60A 250V (200kA AIC RK5 Class)

Mersen TR60R is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class TR-type fuse features a 250V AC rating with a 60A current capacity and 200kA interrupting rating at 250V for reliable short-circuit protection. The 0.81-inch diameter single-barrel construction utilizes Mersen's Tri-Onic technology for fast-acting performance and compact design. Compliant with industry standards for current-limiting fuses, it provides effective protection for motor circuits, transformers, and power distribution equipment in commercial and industrial applications.

Key Features & Specifications

• Type: TR-series current-limiting fuse (Tri-Onic technology)
• Voltage Rating: 250V AC
• Current Rating: 60A
• Diameter: 0.81 inches (20.57mm)
• Class Rating: RK5
• AIC Rating: 200kA @ 250V
• Barrels: 1
• Standards: UL/CSA recognized
• Applications: Motor protection, transformer circuits, power distribution panels

Product Identification

• UPC: 782001747947
• GTIN: 00782001747947
