Cutler Hammer TR1-8/10R - TR Fuse 1A (200kA AIC, RK5 Class)
Cutler Hammer TR1-8/10R - TR Fuse 1A (200kA AIC, RK5 Class)
Cutler Hammer TR1-8/10R - TR Fuse 1A (200kA AIC, RK5 Class)
Cutler Hammer TR1-8/10R - TR Fuse 1A (200kA AIC, RK5 Class)

Cutler Hammer TR1-8/10R - TR Fuse 1A (200kA AIC, RK5 Class)

Cutler Hammer
Price
Save $558.72
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

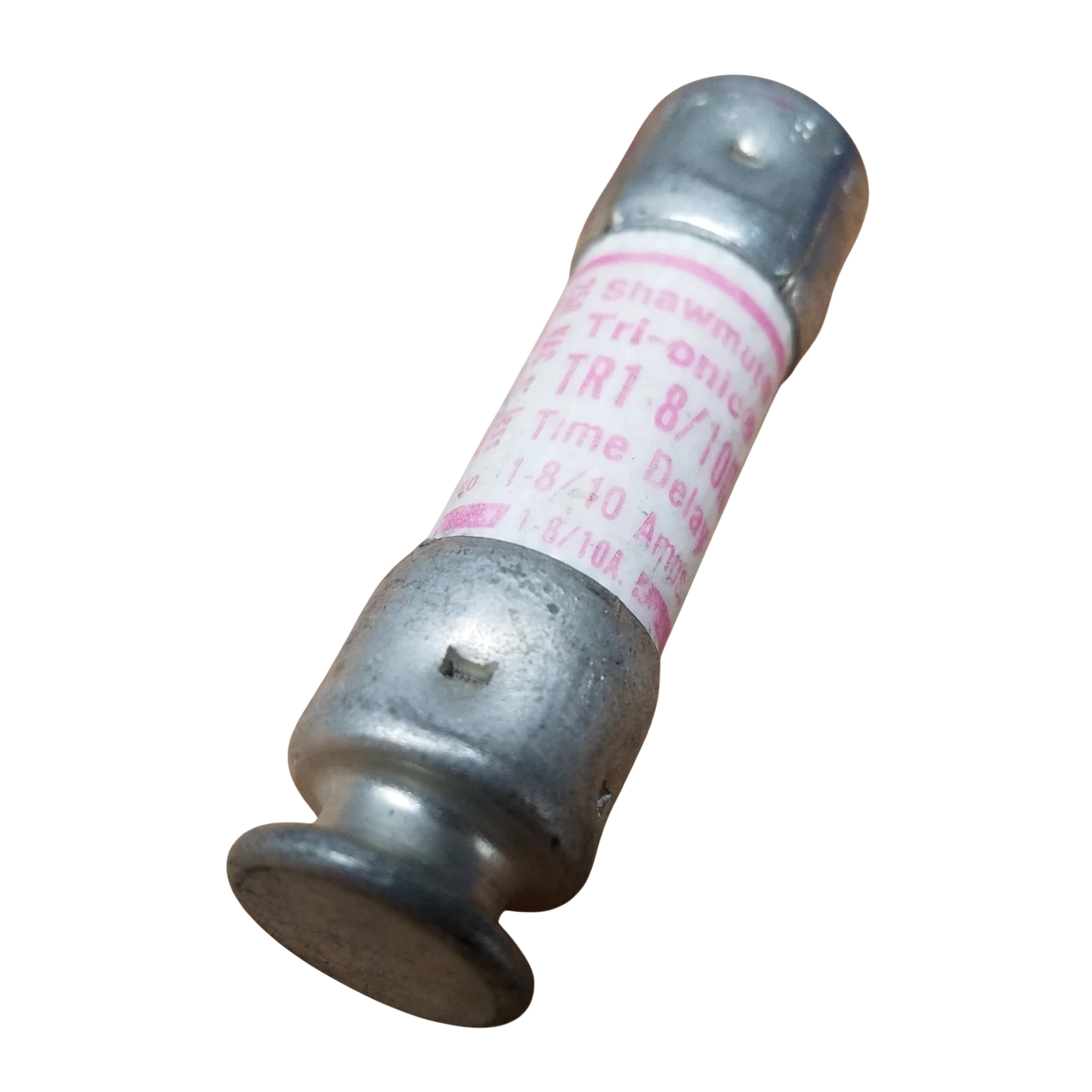

The Cutler Hammer TR1-8/10R is a low voltage current-limiting fuse from the Tri-Onic family, engineered to provide reliable circuit protection in industrial applications. It features a 1A current rating and a 250V AC voltage rating, with a high 200kA interrupting capacity at its rated voltage to safely clear severe fault conditions. The fuse is constructed as a single-barrel unit with a 0.56-inch diameter and is built to the RK5 classification, offering a high degree of current limitation and energy let-through control. This design complies with industry standards for time-delay characteristics, allowing it to withstand harmless transient overloads while providing fast response to short-circuit faults. It is typically applied in the protection of motor circuits, transformers, and feeder circuits where a high degree of protection and coordination is required.

Key Features & Specifications
  • Type: TR, Tri-Onic, Low Voltage Current-Limiting Fuse, Time-Delay, Single Barrel
  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Dimensions: 0.56" Diameter
  • Standards: Class RK5
  • Applications: Motor Circuits, Transformers, Feeder Circuits
  • AIC rating: 200kA @ 250V AC
  • Barrels: 1
  • Class Rating: RK5
  • Diameter: 0.56 inches
  • Weight: 5.19 lb


Product Identification
  • UPC: 782001747633
  • GTIN: 00782001747633
