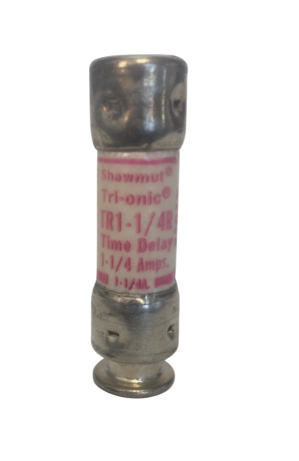

Cutler Hammer TR1-1/4R - TR Fuse 1A (Class RK5, 200kA AIC)
Cutler Hammer TR1-1/4R - TR Fuse 1A (Class RK5, 200kA AIC)
Cutler Hammer TR1-1/4R - TR Fuse 1A (Class RK5, 200kA AIC)
Cutler Hammer TR1-1/4R - TR Fuse 1A (Class RK5, 200kA AIC)

Cutler Hammer TR1-1/4R - TR Fuse 1A (Class RK5, 200kA AIC)

Cutler Hammer
Price
Save $517.09
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler Hammer TR1-1/4R is a Class RK5 low-voltage time-delay fuse designed to provide reliable circuit protection for motor circuits and other applications requiring withstand of temporary inrush currents. It features a 250V AC voltage rating and a 1A current rating, engineered to interrupt up to 200,000 amperes at its rated voltage. The fuse is constructed as a single-barrel device with a compact diameter of 0.56 inches and a lightweight design weighing 0.05 lb. This Tri-Onic series fuse complies with industry standards for current-limiting fuses, ensuring enhanced equipment protection. It is typically applied in industrial control panels, motor branch circuits, and transformer protection where a high degree of interrupting capacity and time-delay characteristics are required.

Key Features & Specifications
  • Type: Class RK5, Tri-Onic time-delay, current-limiting fuse
  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Dimensions: 0.56" diameter
  • Standards: UL/CSA Listed, Class RK5
  • Applications: Motor circuit protection, transformer protection, industrial control circuits
  • AIC rating: 200kA @ 250V AC
  • Class Rating: RK5
  • Barrels: 1
  • Weight: 0.05 lb


Product Identification
  • UPC: 782001747602
  • GTIN: 00782001747602
