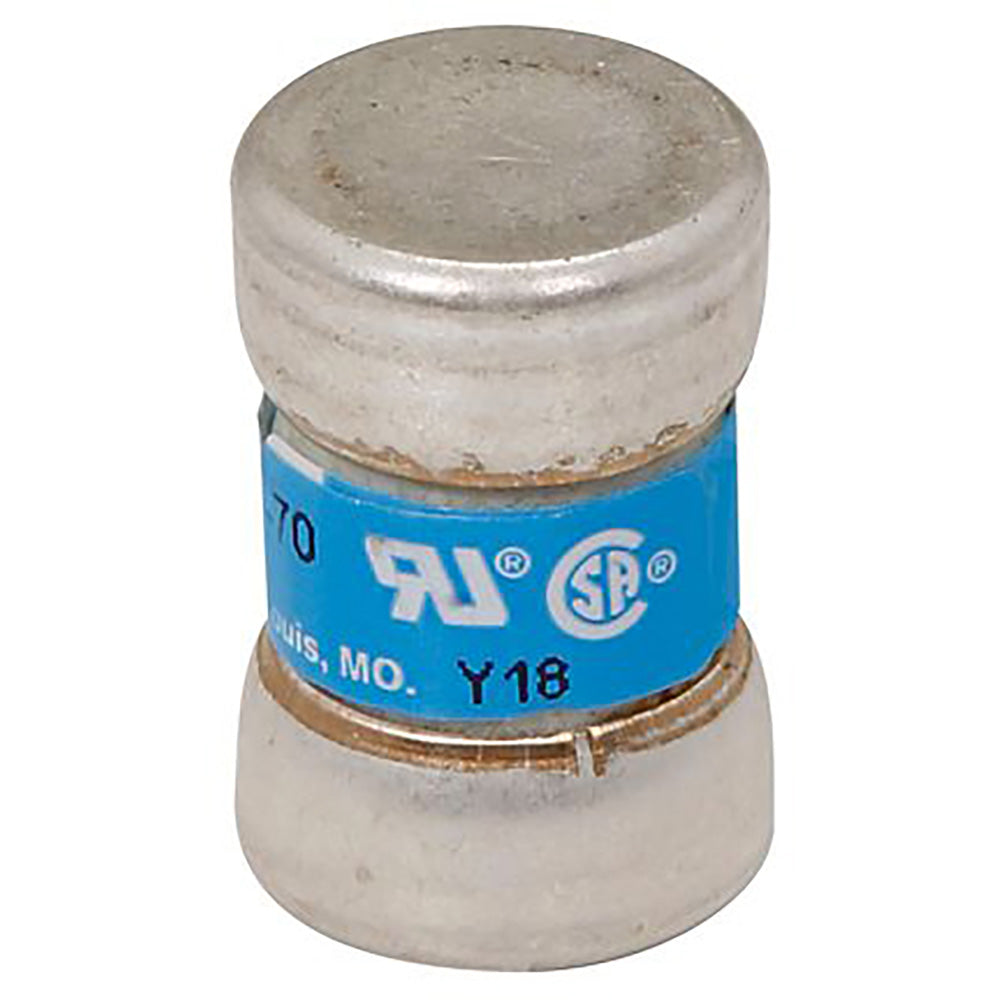

Bussmann TPS-60 - TPS Fuse 60A (170VDC, 100kA AIC)

Bussmann
Price
Save $-39.76
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann TPS-60 is a low-voltage fuse designed for protecting DC power circuits in industrial and telecommunications applications. It features a 60A current rating and a 170VDC voltage rating, providing reliable overcurrent protection. The fuse is constructed with a compact, single-barrel ferrule connection design, measuring 0.56 in x 0.87 in x 0.56 in and weighing 0.2 lb. It is UL Recognized under Guide JFHR2 (File E56412) and offers a high interrupting capacity of 100kA at 170VDC. Typical applications include DC power distribution, UPS systems, and telecom rectifiers.

Key Features & Specifications
  • Type: TPS (Telpower) low-voltage fuse, single-barrel ferrule connection
  • Voltage Rating: 170VDC
  • Current Rating: 60A
  • Dimensions: 0.56 in (Length/Depth) x 0.87 in (Height) x 0.56 in (Width)
  • Diameter: 0.56 in
  • Weight: 0.2 lb
  • AIC Rating: 100kA @ 170VDC
  • Certification: UL Recognized, Guide JFHR2, File E56412
  • Connection: Ferrule
  • Barrels: 1
  • Family: Telpower
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171219709
  • GTIN: 00051712197090
