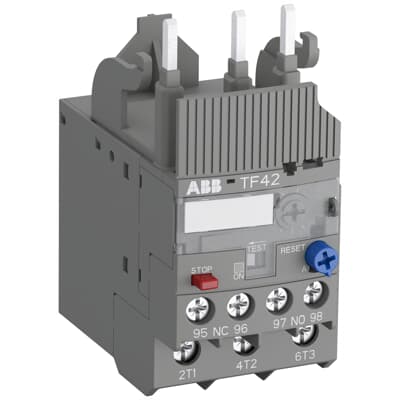

ABB TF42-0.17 - Overload Relay 0.13-0.17A (Trip Class 10)
ABB TF42-0.17 - Overload Relay 0.13-0.17A (Trip Class 10)

ABB TF42-0.17 - Overload Relay 0.13-0.17A (Trip Class 10)

ABB
Price
Save $10.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
ABB TF42-0.17 is a three-pole thermal overload relay designed for motor protection against overloads and phase failures. It features an adjustable current setting range of 0.13-0.17 A, supports a main circuit voltage of 690 V AC, and an auxiliary circuit voltage of 600 V AC/DC, with trip class 10 performance. The relay measures 1.77 in W x 2.78 in D x 3.48 in H, weighs 4 lb, and offers manual or automatic reset with temperature compensation from -25 to 60°C. It complies with IEC/EN 60947-4-1, UL 508, and CSA 22.2 No. 14 standards. This overload relay is suitable for industrial motor control applications, mounting directly to AF9-AF38 frame contactors.

Key Features & Specifications
  • Type: Overload relay
  • Item Subcategory: Contactors
  • Family: TF42
  • Number of Poles: 3
  • Current Setting Range: 0.13-0.17 A
  • Main Circuit Voltage: 690 V AC
  • Auxiliary Circuit Voltage: 600 V AC/DC
  • Trip Class: 10
  • Reset Type: Manual or Automatic
  • Phase Loss Sensitivity: Yes
  • Temperature Compensation: -25 to 60°C
  • Mounting Type: Direct to AF9-AF38 Frame Contactors
  • Dimensions: 1.77 in W x 2.78 in D x 3.48 in H
  • Weight: 4 lb
  • Standards: IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14


Product Identification
  • UPC: 4013614404696
  • GTIN: 00013614404690
