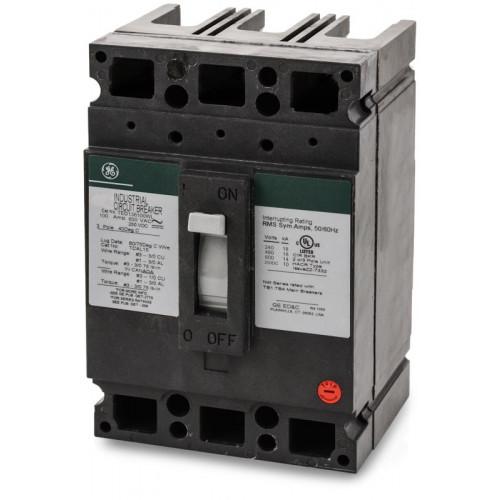

General Electric TED136100WL - Molded Case Circuit Breaker, 100A 600V 3P
General Electric TED136100WL - Molded Case Circuit Breaker, 100A 600V 3P

General Electric TED136100WL - Molded Case Circuit Breaker, 100A 600V 3P

General Electric
Price
Save $283.80
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED136100WL is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 100A current rating and a 600V voltage rating, housed within a compact 4-1/8 in x 6-5/16 in bolt-on frame that weighs 3 lb. This thermal-magnetic breaker, part of the E150 Line, is CSA Certified and UL Listed, ensuring compliance with industry safety standards for use in GE Panelboards and similar commercial installations.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: 150A/TED
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Phase Connection: 3-Phase, ABC
  • Connection: Bolt-on Panelboard
  • Terminal Connection: Line/Load Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • MCM Size: Minimum Wire Size 4 AWG (Al) / 6 AWG (Cu), Maximum Wire Size 2 AWG
  • Dimensions: 4-1/8 in x 6-5/16 in
  • Weight: 3 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards & Certification: CSA Certified, UL Listed
  • Panel Type: GE Panelboards
  • Family: E150 Line
  • Country of Origin: United States


Product Identification
  • UPC: 783164063264
  • GTIN: 00783164063264
