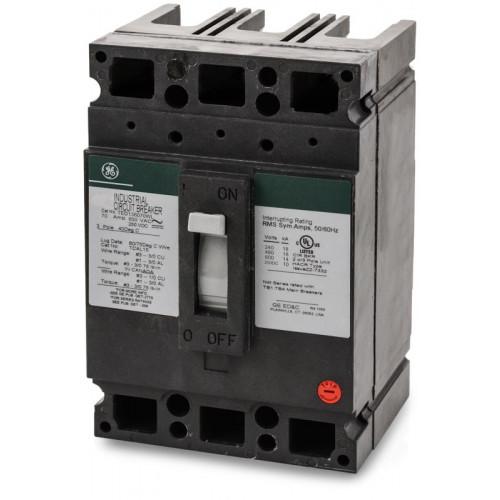

General Electric TED136070WL - 70A Molded Case Breaker (3P, 600V)
General Electric TED136070WL - 70A Molded Case Breaker (3P, 600V)

General Electric TED136070WL - 70A Molded Case Breaker (3P, 600V)

General Electric
Price
Save $239.26
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED136070WL is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial electrical systems. It features a 70A current rating and a 600V voltage rating, housed within a compact 4-1/8 in x 6-5/16 in frame that weighs 3 lb. This thermal magnetic breaker is CSA Certified and UL Listed, ensuring compliance with industry safety standards for use in GE Panelboards and similar commercial installations. Its feed-thru connection and 18kA interrupting capacity at 480V make it suitable for protecting feeder and branch circuits in a wide operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V
  • Current Rating: 70A
  • Frame Size: 150A/TED
  • Poles: 3
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Terminal Connection: Line/Load Lug
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: GE Panelboards
  • MCM Size: Min. Wire Size 4 AWG (Al), 6 AWG (Cu); Max. Wire Size 2 AWG
  • Dimensions: 4-1/8 in x 6-5/16 in
  • Weight: 3 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards & Certification: CSA Certified, UL Listed
  • Family: E150 Line
  • Country of Origin: United States


Product Identification
  • UPC: 783164063233
  • GTIN: 00783164063233
