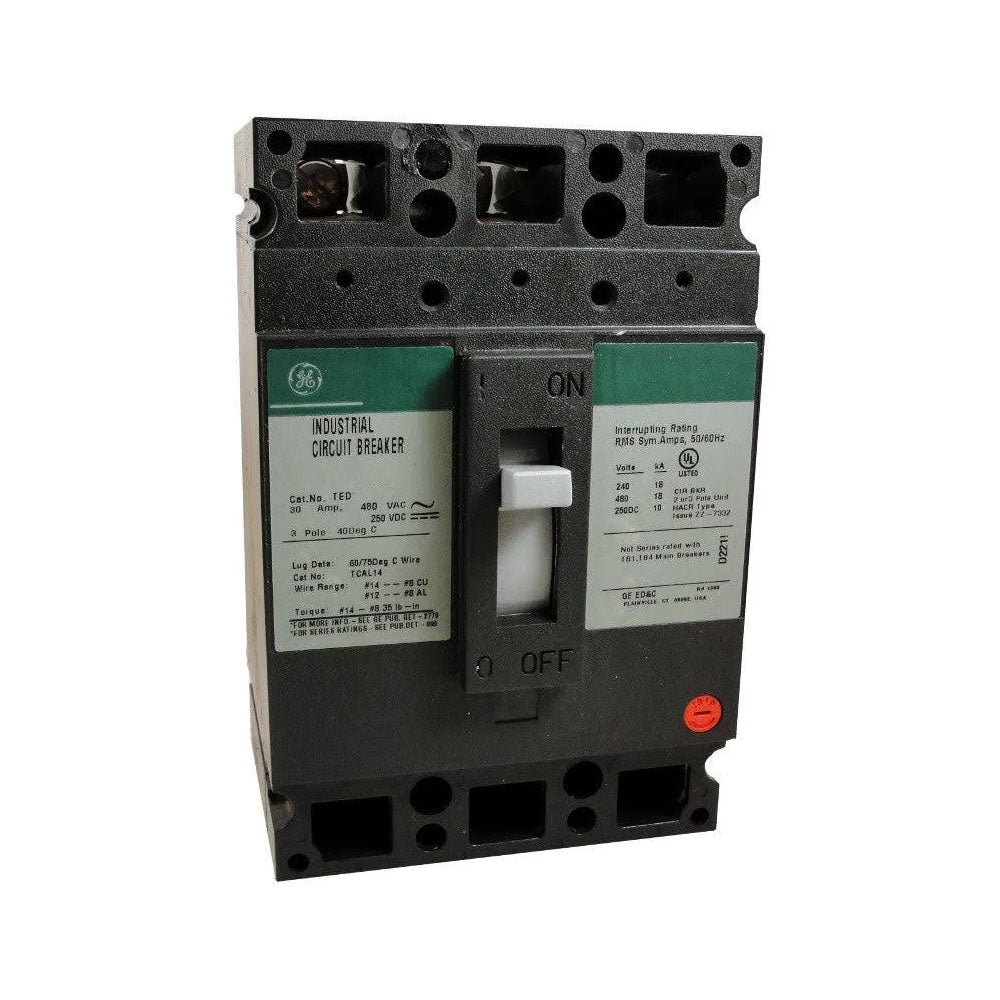

General Electric TED136025WL - Molded Case Circuit Breaker 25A 600V 3P
General Electric TED136025WL - Molded Case Circuit Breaker 25A 600V 3P

General Electric TED136025WL - Molded Case Circuit Breaker 25A 600V 3P

General Electric
Price
Save $302.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED136025WL is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 25A current rating and a 600V voltage rating, housed within a compact 4-1/8 in x 6-5/16 in bolt-on frame that weighs 3 lb. The breaker is CSA Certified and UL Listed, ensuring compliance with North American safety standards for industrial panelboards. Its thermal-magnetic trip unit with long-time and instantaneous (LI) functions makes it suitable for protecting feeders and branch circuits in commercial and industrial GE panelboard applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-on Panelboard Connection
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Frame Size: 150A/TED
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Phase Connection: 3-Phase, ABC
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Terminal Connection: Line/Load Lug
  • Wire Size Range: Minimum 4 AWG (Al) / 6 AWG (Cu), Maximum 2 AWG
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Standards & Certification: CSA Certified, UL Listed
  • Dimensions: 4-1/8 in x 6-5/16 in
  • Weight: 3 lb
  • Panel Type: GE Panelboards
  • Country of Origin: United States


Product Identification
  • UPC: 783164063165
  • GTIN: 00783164063165
