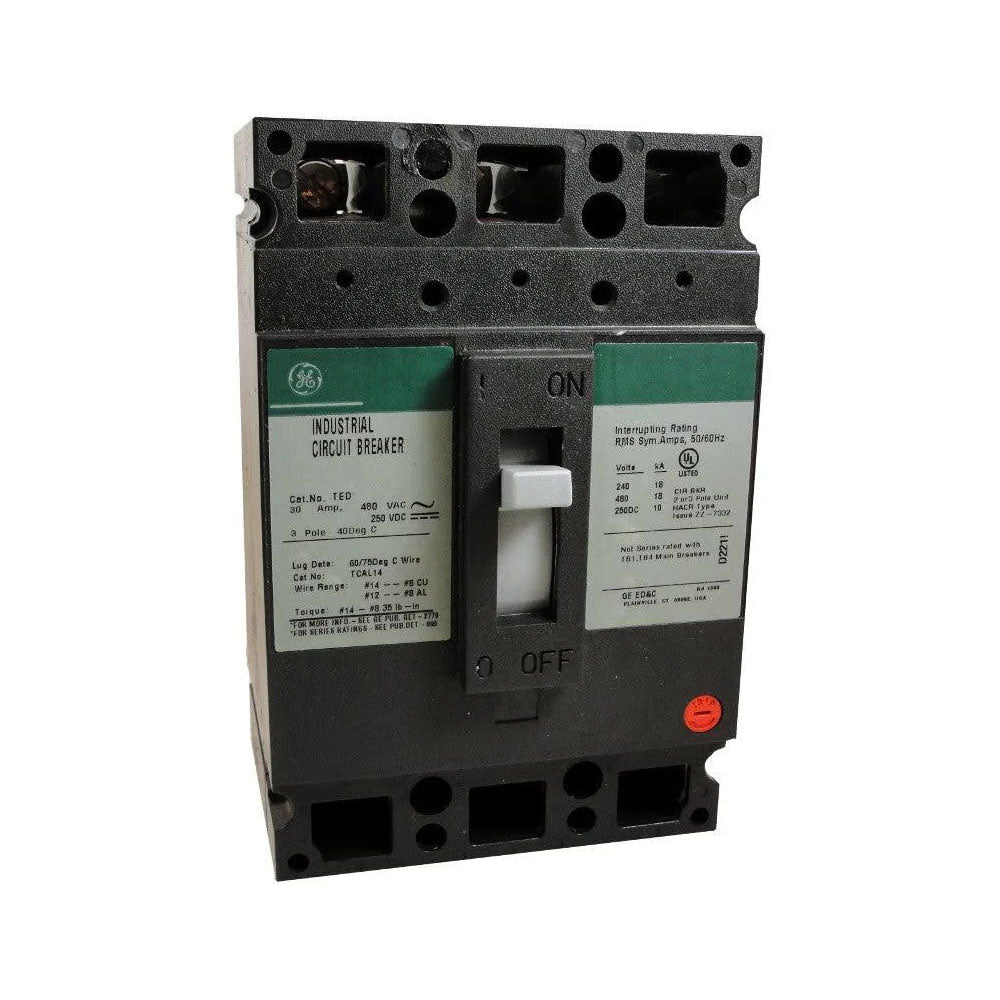

General Electric TED134100WL - Molded Case Circuit Breaker 100A 480V 3P
General Electric TED134100WL - Molded Case Circuit Breaker 100A 480V 3P

General Electric TED134100WL - Molded Case Circuit Breaker 100A 480V 3P

General Electric
Price
Save $248.05
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TED134100WL is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial electrical systems. It features a 100A current rating and a 480V AC voltage rating, engineered to interrupt fault currents up to 18kA. The unit is constructed with a compact, feed-thru connection design measuring 5" x 10" x 8" and weighing 3 lb, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous (LI) protection functions. This breaker is UL-certified and is typically applied in panelboards, switchboards, and industrial control equipment requiring robust circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, TED Type
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 5" H x 10" W x 8" D
  • Standards: UL Certified
  • Applications: Panelboards, Switchboards, Industrial Control
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 100A
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: E150 Line
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Certification: UL
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL
  • Installation Type: Fixed
  • Item QTY: 1
  • Breaker Frame: E150


Product Identification
  • UPC: 783164063134
  • GTIN: 40783164063132
