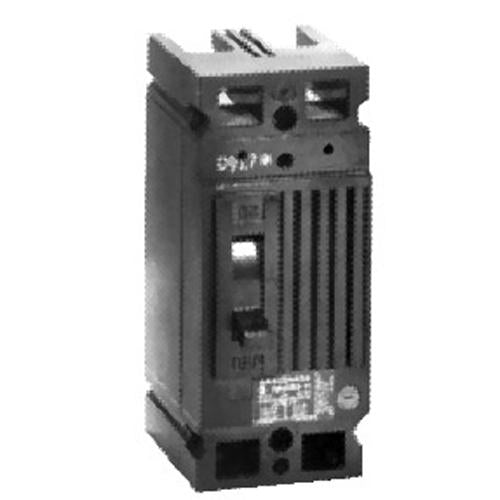

General Electric TEB122015 - Molded Case 15A 2-Pole 240V
General Electric TEB122015 - Molded Case 15A 2-Pole 240V

General Electric TEB122015 - Molded Case 15A 2-Pole 240V

General Electric
Price
Save $161.09
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon

⚡ Product Branding Information

Some General Electric products may now ship with ABB branding due to ABB’s acquisition of GE Industrial Solutions.

Depending on the manufacturing date or production batch, the item or packaging may display either GE or ABB branding.

Unless otherwise noted, these products are considered equivalent in form, fit, function, and specifications.

Please contact our team before placing your order if brand labeling or packaging is critical for your application.

Call for Price
General Electric TEB122015 Circuit Breaker - Molded Case 15A 2-Pole 240V Thermal Magnetic The General Electric TEB122015 is a 2-pole molded case circuit breaker from the E150 Line, designed for overcurrent protection in electrical distribution systems. This unit is rated for 240V AC with a 15A current capacity and a 10kA interrupting capacity at 240V, providing reliable protection via its LI (Long-Time and Instantaneous Trip) functions. Measuring 6.51 inches in height, 2.34 inches in width, and 3.88 inches in depth, it features a bolt-on connection and a thermal magnetic protection mechanism, weighing 2 lb. The breaker operates within a temperature range of -13 to 158 °F (-25 to 70 °C) and is suitable for single-phase applications. It is commonly used in industrial and commercial settings for branch circuit protection in panelboards and load centers.

Key Features & Specifications
  • Type: TEB Molded Case Circuit Breaker
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Dimensions: Height 6.51 inches X Width 2.34 inches X Depth 3.88 inches
  • Standards: UL Listed
  • Applications: Industrial and commercial branch circuit protection
  • Switch Type: Toggle
  • Configuration: 2-Pole
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Shipping Dimensions: 6.51 x 2.34 x 3.88 inches
  • Phase: 1
  • Voltage: 240V
  • Amperage: 15A
  • AIC rating: 10kA@240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: E150
  • Trip Type: Thermal Magnetic
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Bolt-On
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: 15A
  • Dist Voltage: 240V
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 15A
  • Full Load Amp Minimum: 15A
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 15A
  • Amperage Minimum: 15A
  • Nema Rating: Not specified
  • Switch Style: Toggle
  • Wire Size: Not specified
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-On
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 1-Phase
  • Standards: UL 489
  • Compatible Frames: E150
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: E150
  • Current Rating: 15A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 783164068502
  • GTIN: 00783164068504
