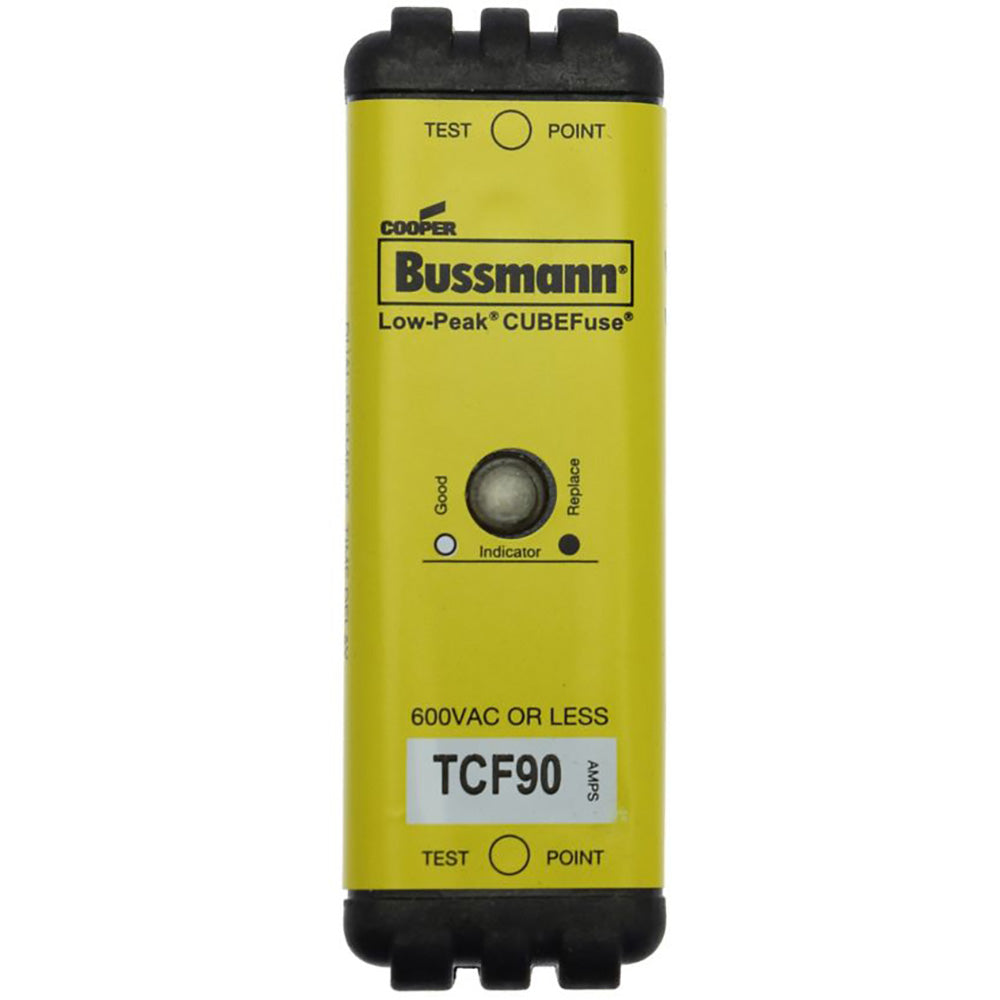

Bussmannn TCF90 - Class H Time-Delay Fuse 90A@600V (300kA AIC)

Bussmannn TCF90 is a Class H low-voltage fuse designed for industrial circuit protection with time-delay characteristics. It features a 600V AC/DC voltage rating and 90A current capacity, housed in a compact 1" x 3" cylindrical body with 0.56" diameter constructed to UL/CSA standards. The fuse meets CE/UL Special Purpose Guide JFHR and CSA Class 1422-02 certifications, offering 300kA interrupting capacity at 600V for robust short-circuit protection. Typical applications include motor branch circuits, transformers, and feeder protection in industrial power distribution systems.

Key Features & Specifications

• Type: Time-delay (TD) Class H fuse with single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 90A
• Dimensions: 1" x 3" (25.4mm x 76.2mm)
• Diameter: 0.56" (14.2mm)
• Weight: 1 lb (0.45kg)
• Standards: CE/UL Special Purpose Guide JFHR, CSA Class 1422-02
• AIC Rating: 300kA@600V
• Applications: Motor circuits, transformers, industrial feeders
• Class Rating: H
• Barrels: 1
• Velocity: Time-Delayed (TD)
• Country of Origin: China

Product Identification

• UPC: 051712618175
• GTIN: 00051712618175
