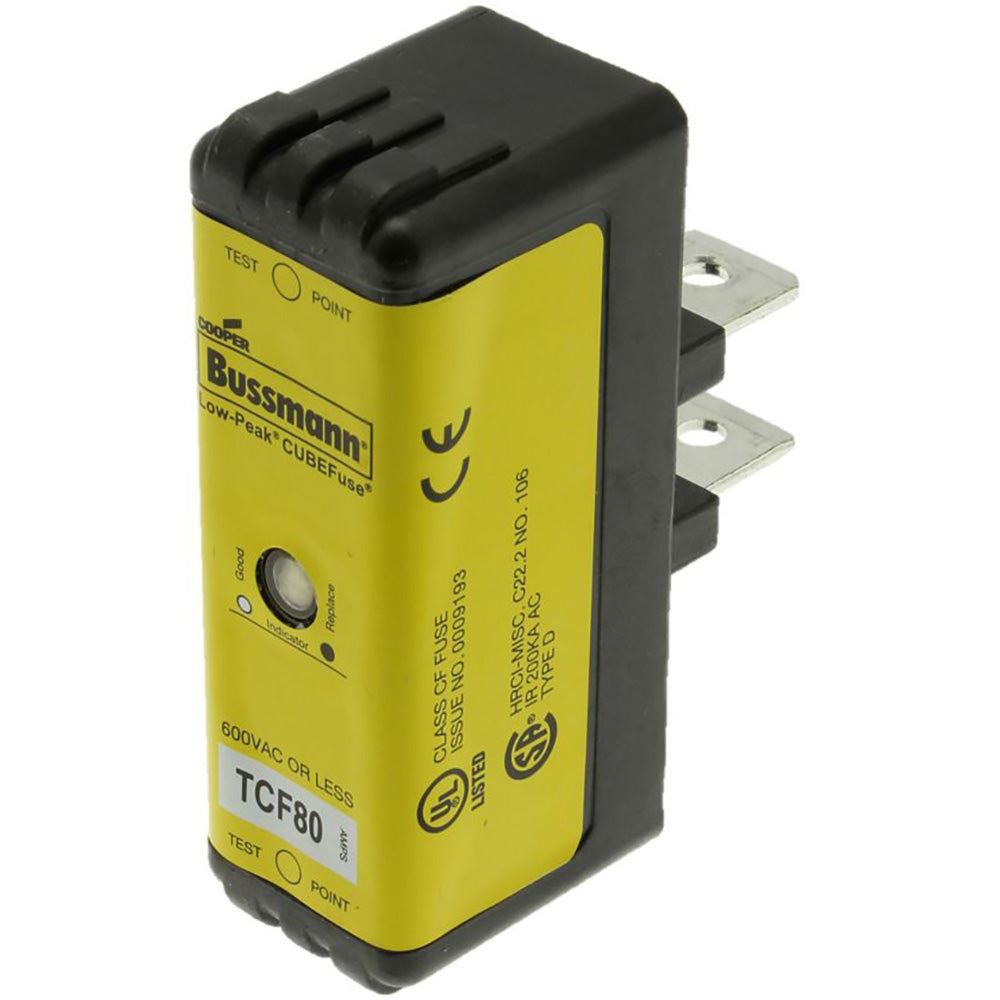

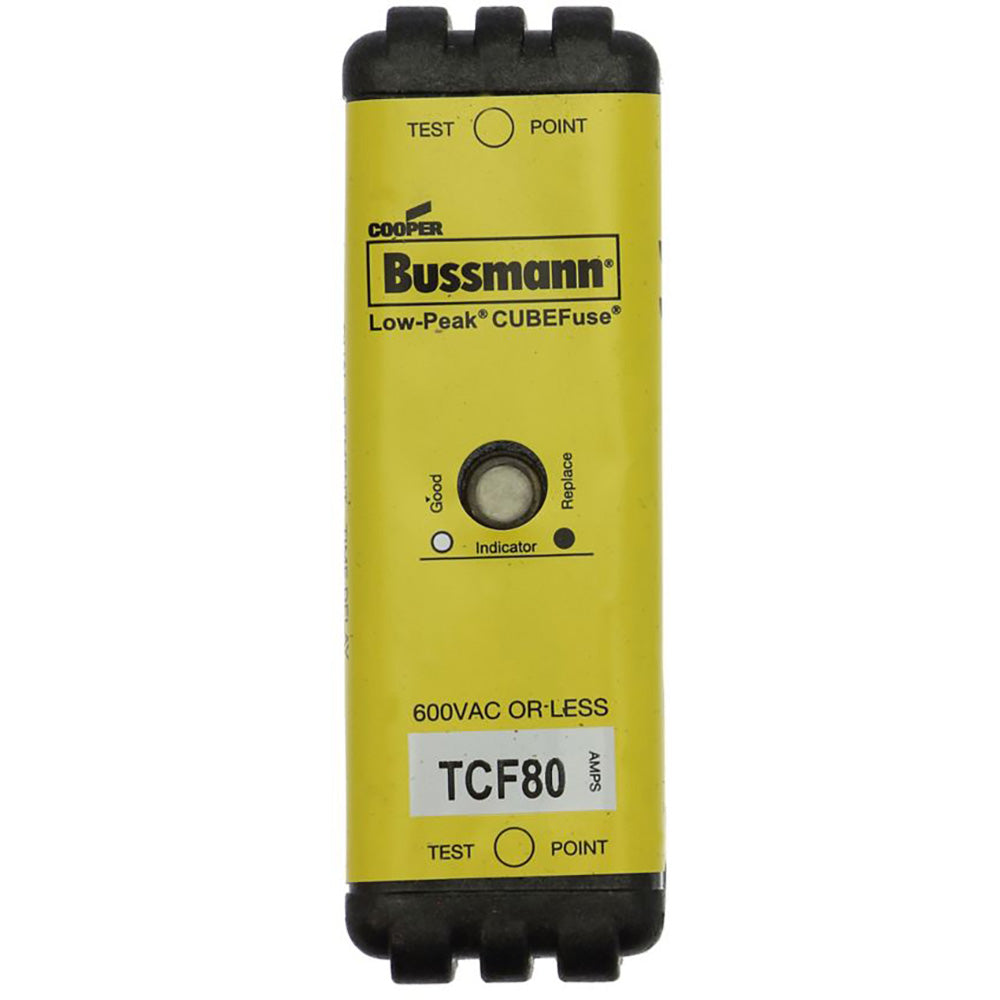

Bussmannn TCF80 - Class CF Time-Delay Fuse 80A@600V (300kA AIC)

Bussmannn TCF80 is a Class CF time-delay low-voltage fuse designed for circuit protection in industrial applications. It features a 600V AC/DC voltage rating with an 80A current capacity and 300kA interrupting rating at 600V for robust fault protection. The compact 1" x 3" cylindrical design with single-barrel construction weighs 1 lb and meets CE/UL Special Purpose Guide JFHR and CSA Class 1422-02 standards. This CUBEFuse series component is engineered for motor branch circuits, transformers, and other equipment requiring time-delay protection against overloads and short circuits.

Key Features & Specifications

• Type: TCF time-delay fuse with cylindrical design
• Voltage Rating: 600V AC/DC
• Current Rating: 80A
• Dimensions: 1" x 3" (25.4mm x 76.2mm)
• Standards: CE/UL Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, transformers, industrial equipment
• Class Rating: CF
• Barrels: 1
• Velocity: Time-Delayed (TD)
• AIC rating: 300kA@600V
• Weight: 1 lb (0.45 kg)

Product Identification

• UPC: 051712618168
• GTIN: 00051712618168
