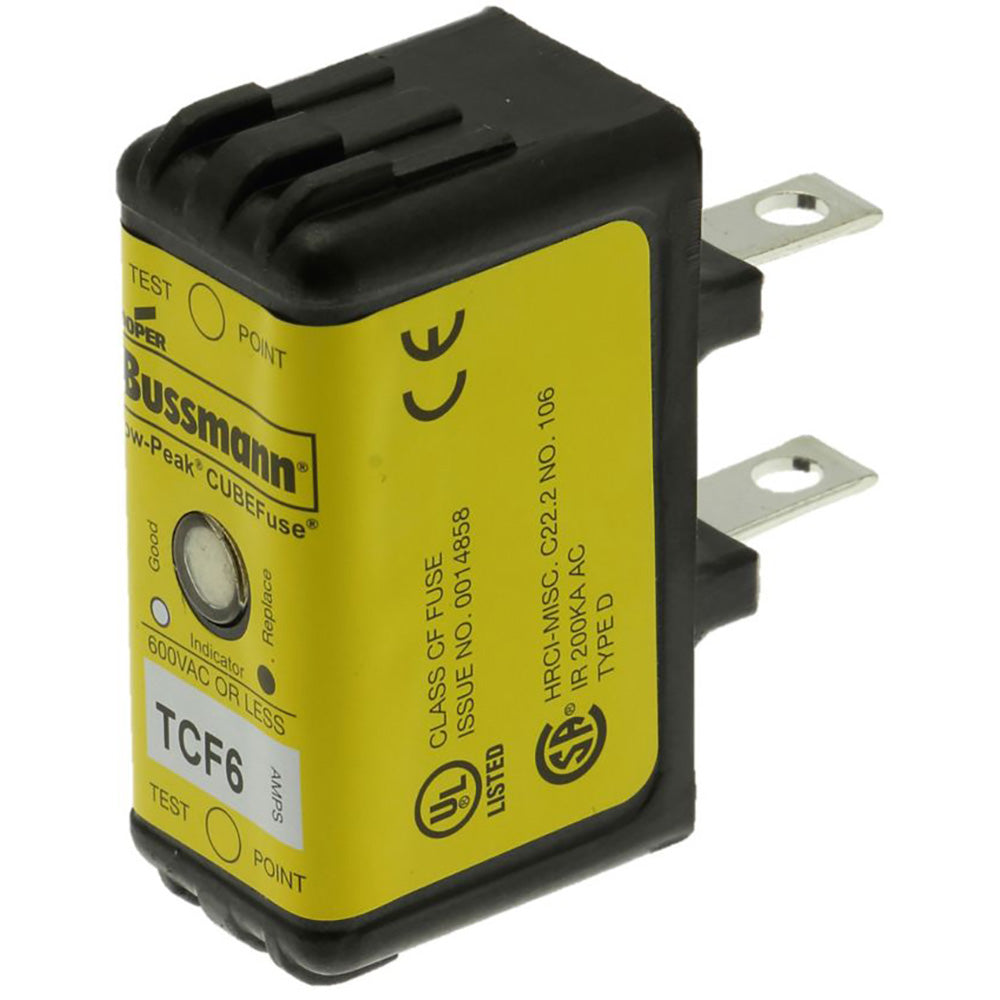

Bussmann TCF6 - Class H Time-Delay Fuse 6A 600V (300kA AIC)

Bussmann TCF6 is a Class H low-voltage fuse designed for industrial circuit protection applications requiring time-delay characteristics. It features a 600V AC voltage rating with a 6A current rating and provides reliable protection with a 300kA interrupting capacity at rated voltage. The fuse construction measures 3/4" x 1-7/8" with single-barrel design and weighs 1 lb, built to withstand demanding industrial environments. It complies with CE/UL Special Purpose Guide JFHR and CSA Class 1422-02 standards for safety and performance verification. Typical applications include motor branch circuits, transformers, and other equipment where time-delay protection is necessary to accommodate temporary inrush currents.

Key Features & Specifications

• Type: Class H time-delay low-voltage fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 3/4" x 1-7/8"
• Standards: CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Motor circuits, transformers, industrial equipment protection
• Velocity: TD - Time Delayed
• AIC rating: 300kA@600V
• Class Rating: H
• Barrels: 1
• Weight: 1 lb
• Country of Origin: China

Product Identification

• UPC: 051712614979
• GTIN: 00051712614979
