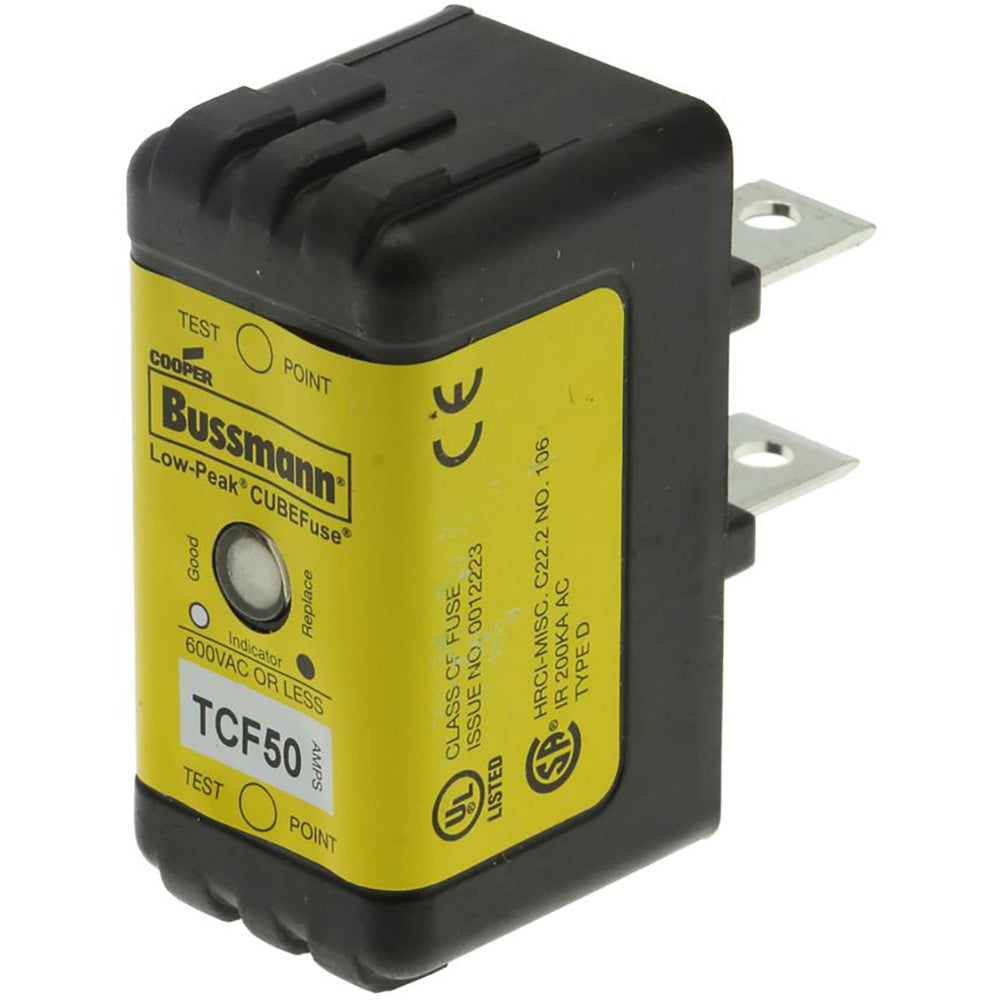

Bussmannn TCF50 - Class CF Time-Delay Fuse 50A@600V (300kA AIC)

Bussmannn TCF50 is a Class CF time-delay low-voltage fuse designed for circuit protection in industrial applications. It features a 600V AC/DC voltage rating and 50A current capacity with a 300kA interrupting rating at 600V for robust short-circuit protection. The compact 1" x 2-1/8" single-barrel construction weighs 1 lb and meets CE/UL Special Purpose Guide JFHR and CSA Class 1422-02 standards. This CUBEFuse series component is commonly used in motor control centers, switchgear, and power distribution systems requiring time-delay characteristics.

Key Features & Specifications

• Type: TCF time-delay fuse (Class CF)
• Voltage Rating: 600V AC/DC
• Current Rating: 50A
• Dimensions: 1" x 2-1/8"
• Weight: 1 lb
• Standards: CE/UL Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor control centers, switchgear, power distribution
• AIC rating: 300kA@600V
• Barrels: 1
• Velocity: Time-delayed (TD)
• Family: CUBEFuse

Product Identification

• UPC: 051712615075
• GTIN: 00051712615075
