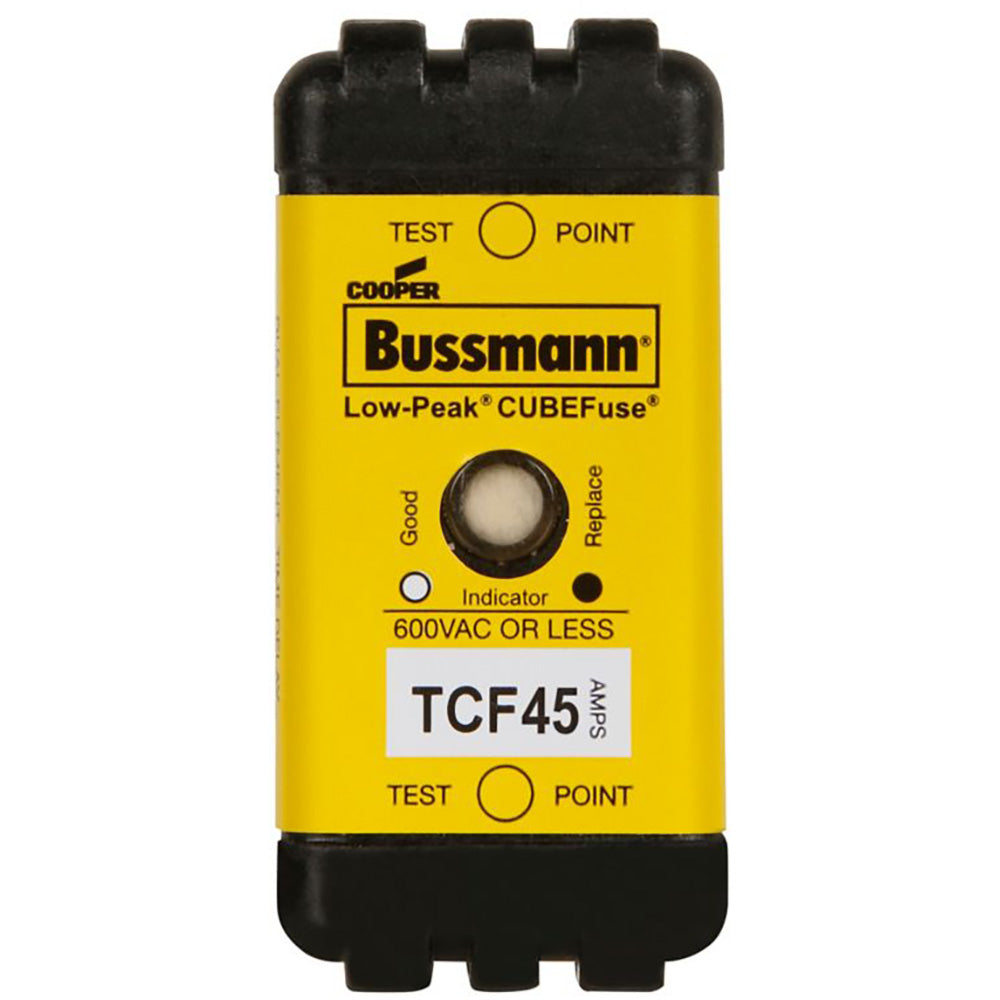

Bussmann TCF45 - Class CF Time-Delay Fuse 45A 600V

Bussmann
Price
Save $2,689.26
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Bussmann TCF45 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 45A current rating and a 600V AC voltage rating, with a compact radial blade plug-in connection measuring 2.13 in x 1.9 in x 1 in and weighing 0.17 lb. The fuse is constructed to meet CE, UL (Special Purpose Guide JFHR), and CSA Class 1422-02 standards, offering a high 300kA interrupting capacity at 600V for reliable fault protection. Its Class CF, time-delay (TD) characteristic makes it suitable for protecting motors, transformers, and circuits with high inrush currents.

Key Features & Specifications
  • Type: TCF, CUBEFuse family, time-delay (TD) protection
  • Voltage Rating: 600V AC
  • Current Rating: 45A
  • Dimensions: 2.13 in (L) x 1.9 in (H) x 1 in (W)
  • Weight: 0.17 lb
  • Standards: CE, UL Special Purpose Guide JFHR, CSA Class 1422-02
  • Class Rating: CF
  • Connection: Radial Blade Plug-In
  • AIC rating: 300kA @ 600V
  • Country of Origin: China


Product Identification
  • UPC: 051712615068
  • GTIN: 00051712615068
