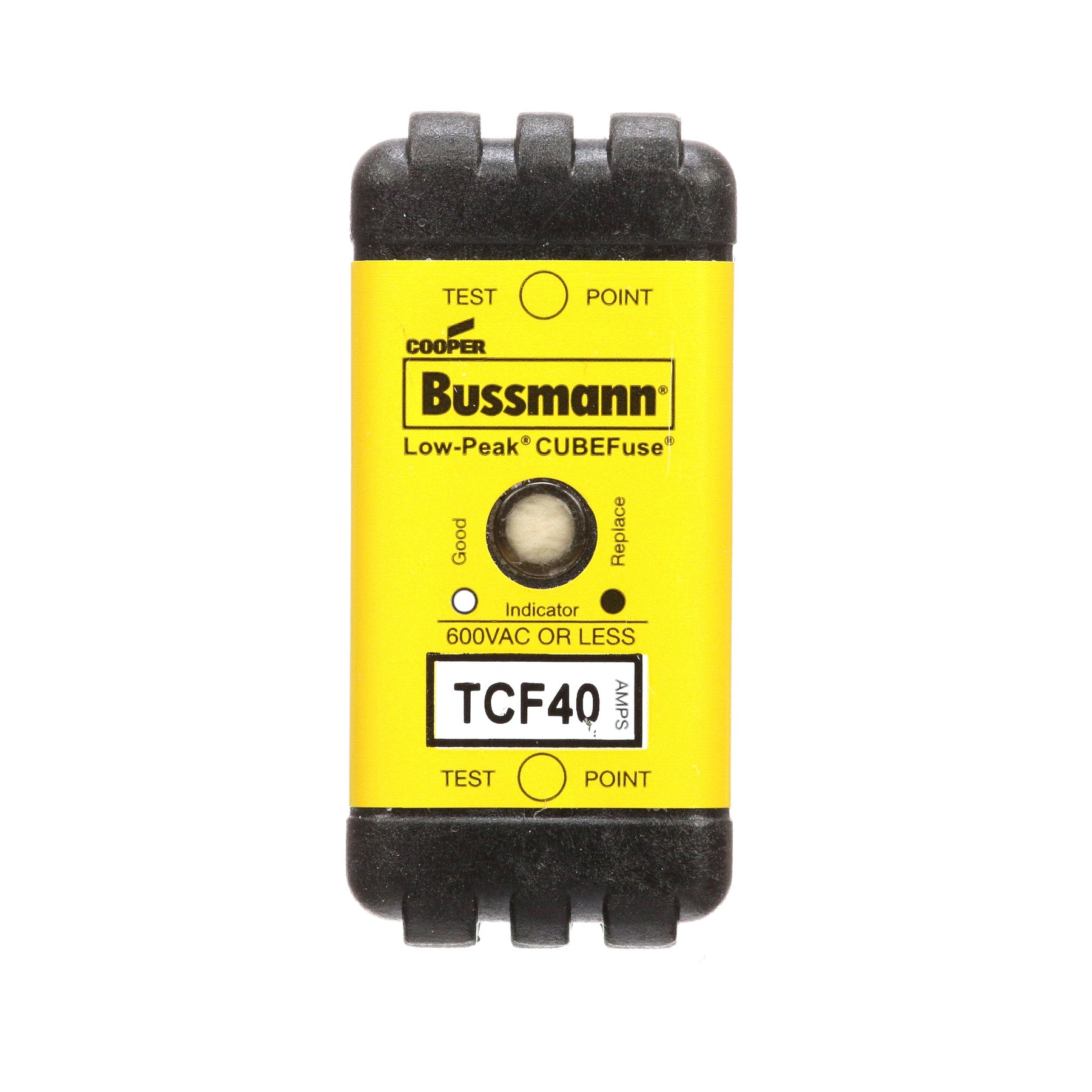

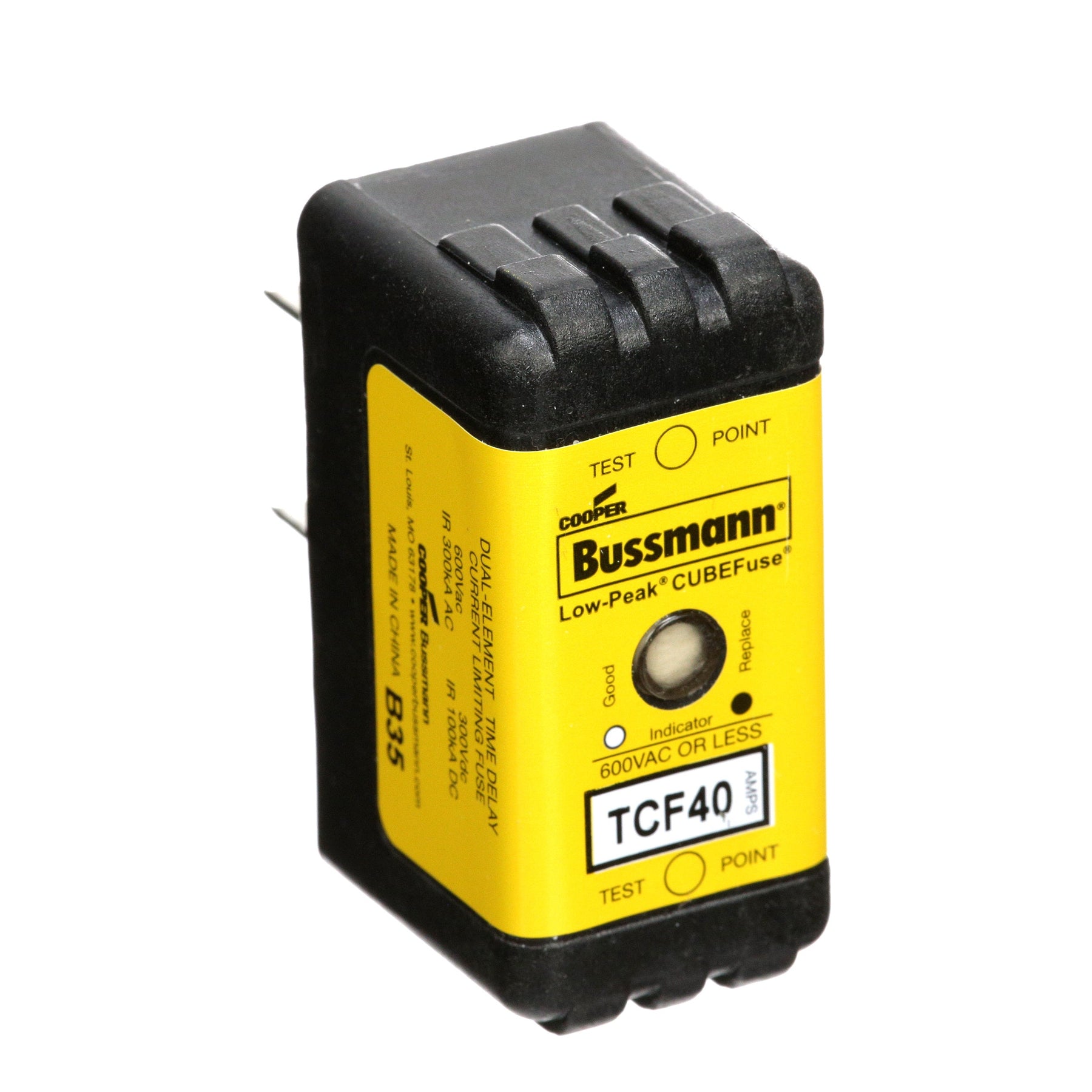

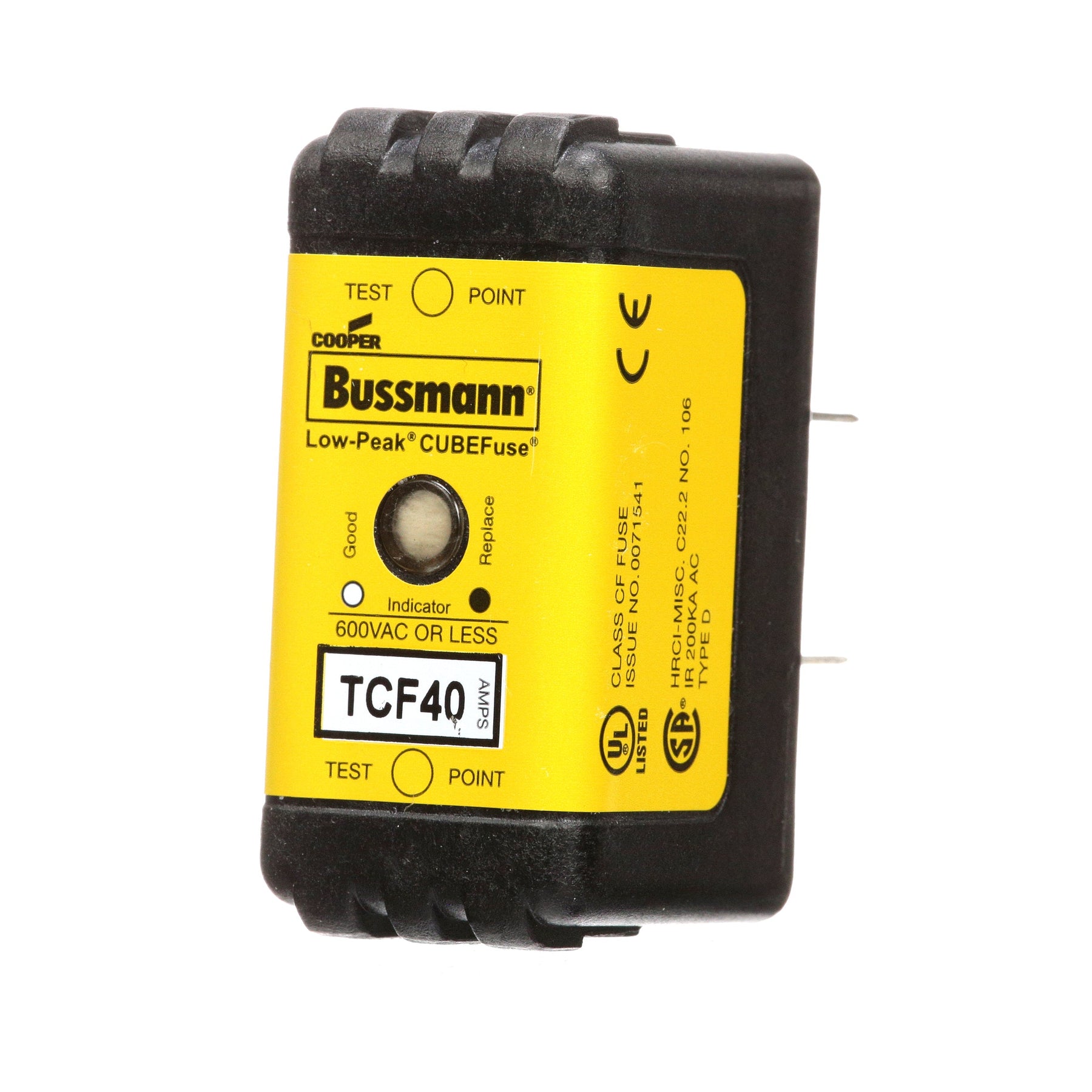

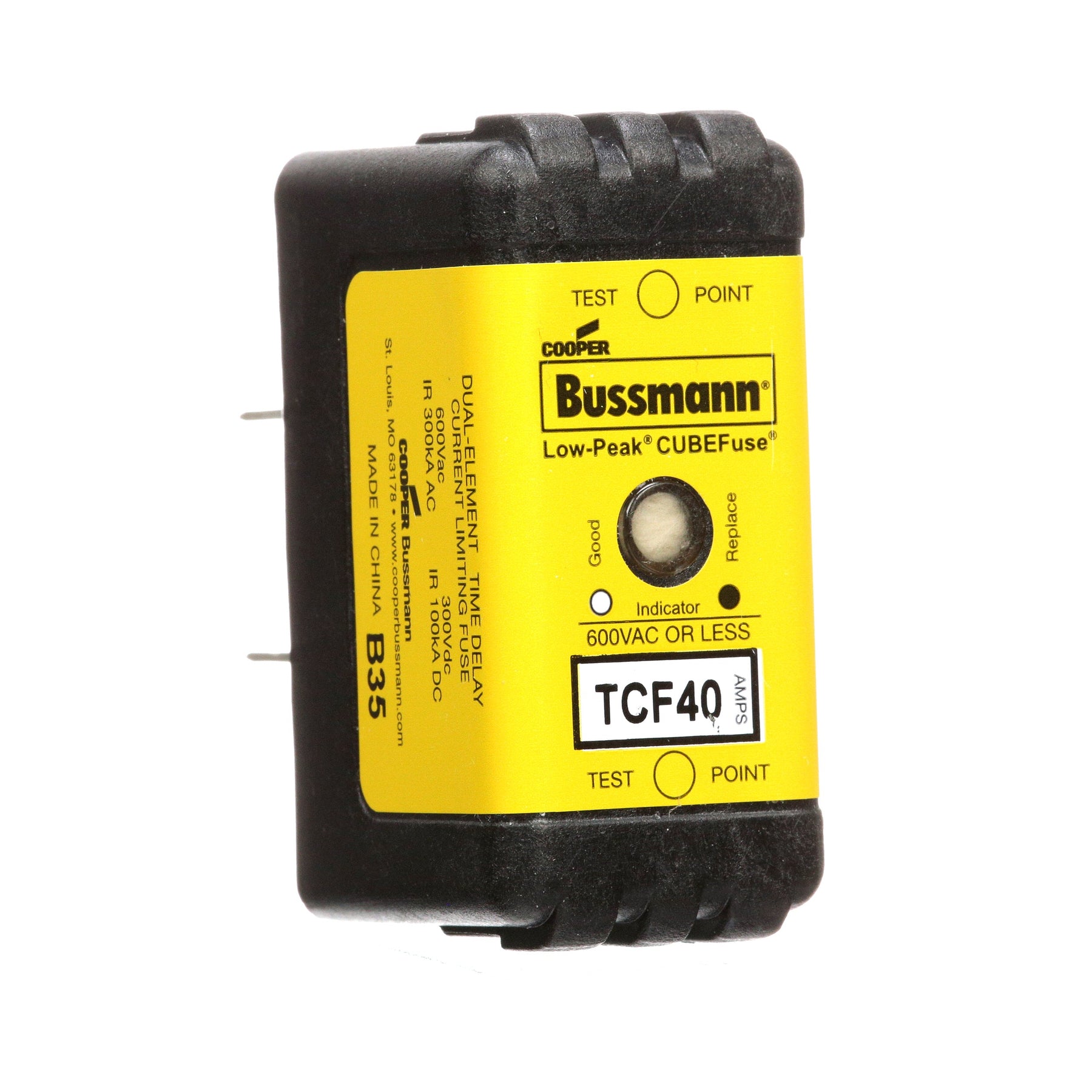

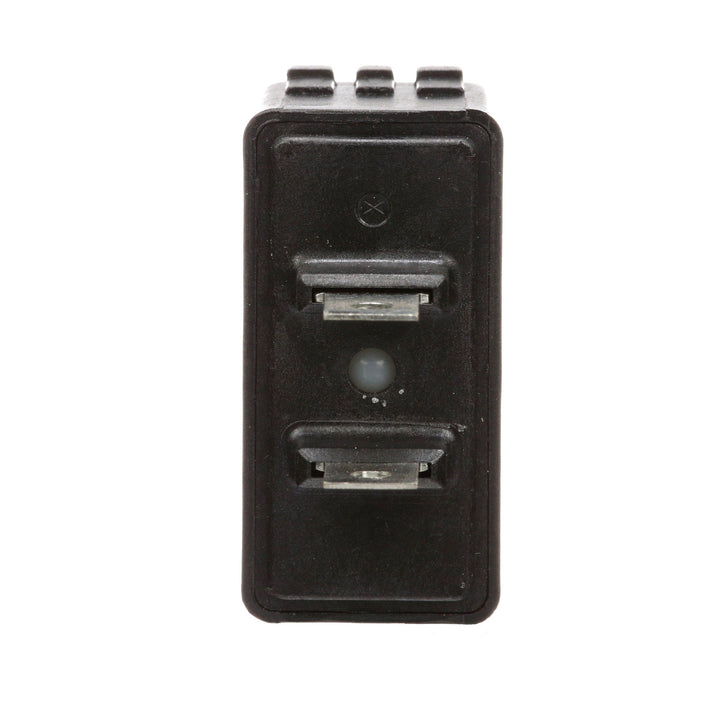

Bussmannn TCF40 - Class CF Time-Delay Fuse 40A 600V (300kA AIC)

Bussmannn TCF40 is a Class CF time-delay fuse designed for protecting electrical circuits in industrial applications. It features a 600V AC rating with a 40A current capacity and a 300kA interrupting rating at 600V for reliable overcurrent protection. The compact 1" x 2-1/8" fuse body contains a single barrel construction with time-delay characteristics for inrush current tolerance. Certified to CE/UL Special Purpose Guide JFHR and CSA Class 1422-02 standards, this fuse is commonly used in motor control centers, industrial control panels, and power distribution systems requiring Class CF protection.

Key Features & Specifications

• Type: TCF time-delay fuse with single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 40A
• Dimensions: 1" x 2-1/8"
• Weight: 1 lb
• Standards: CE/UL Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor control centers, industrial control panels, power distribution
• Class Rating: CF
• Barrels: 1
• Velocity: TD - Time Delayed
• AIC rating: 300kA@600V

Product Identification

• UPC: 051712615051
• GTIN: 00051712615051
