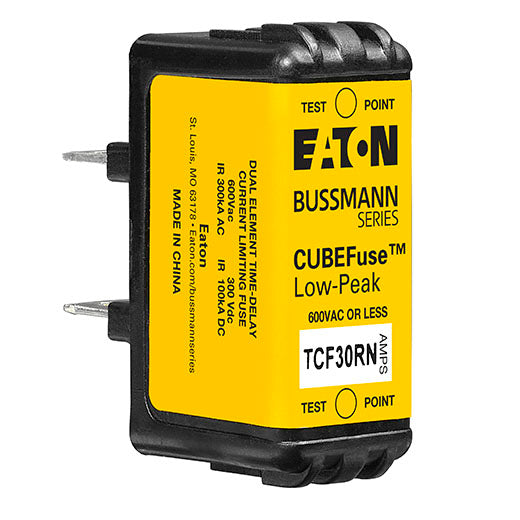

Bussmann TCF30RN - Class H Time-Delay Fuse 30A 600V (300kA AIC)

Bussmann TCF30RN is a Class H time-delay fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC applications with a 30A current capacity, it features a compact 3/4" x 1-7/8" ceramic body construction with 0.56" diameter and TD (Time Delay) velocity characteristics. This UL-listed, CSA-certified fuse meets CE and RoHS standards while delivering 300kA interrupting capacity at 600V for reliable overcurrent protection in motor control centers, industrial panels, and power distribution equipment.

Key Features & Specifications

• Type: Class H time-delay low-voltage fuse with ceramic body construction
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 3/4" x 1-7/8" x 0.56" diameter
• Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Applications: Motor control centers, industrial panels, power distribution
• Class Rating: H
• Barrels: 1
• Velocity: TD (Time Delayed)
• AIC rating: 300kA@600V
• Weight: 1 lb
• Country of Origin: China

Product Identification

• UPC: 051712220965
• GTIN: 00051712220965
