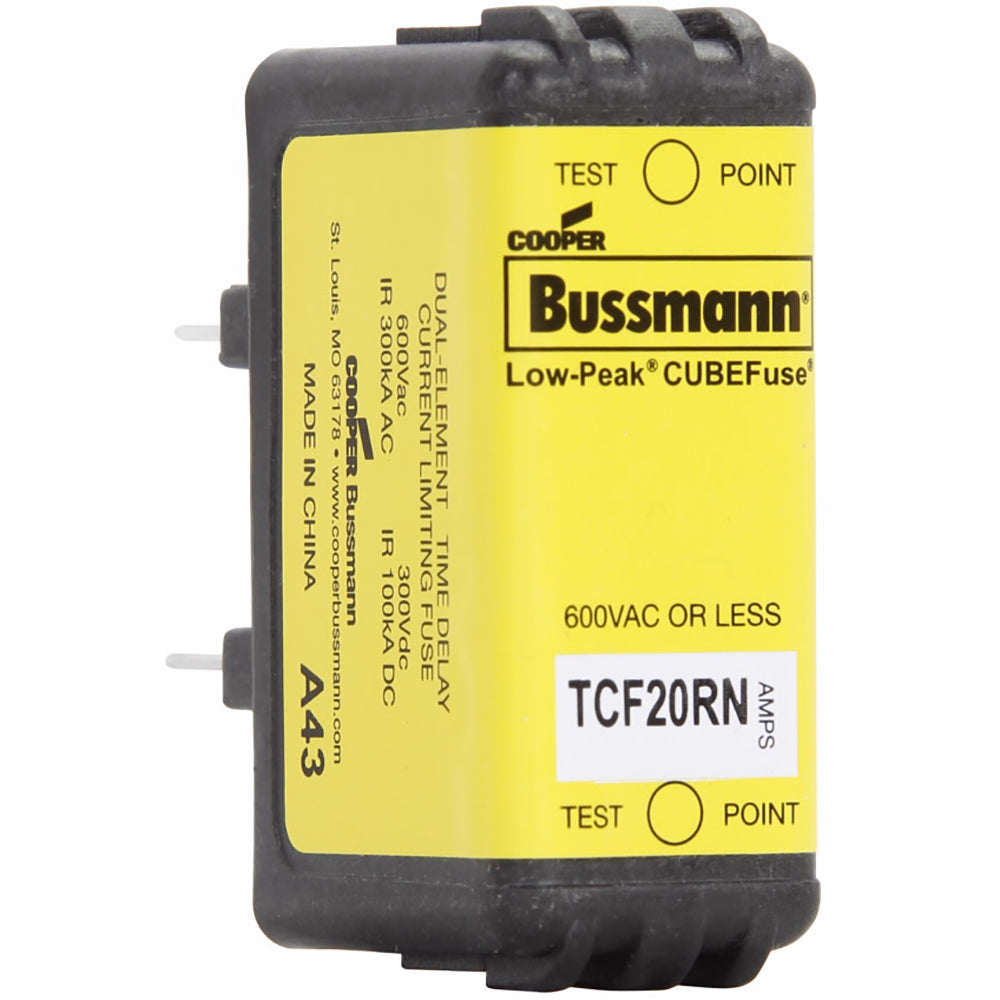

Bussmann TCF20RN - Class CF Time-Delay Fuse 20A 600V (300kA AIC)

Bussmann
Price
Save $1,496.57
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann TCF20RN is a low-voltage, time-delay Class CF fuse designed for branch circuit and feeder protection in industrial electrical systems, rated for 20A at 600V AC/DC with an interrupting rating of 300kA. Its compact, single-barrel construction measures 1.88" x 1" x 0.75" (L x H x W) and weighs 0.043 lb, providing reliable protection against overloads and short circuits. The fuse is certified to UL, CSA, CE, and RoHS standards, ensuring compliance with international safety and environmental regulations. Typical applications include protecting motor circuits, transformers, and other equipment where a time-delay characteristic is required to handle inrush currents.

Key Features & Specifications
  • Type: Low Voltage, Time-Delay (TD), Class CF, CUBEFuse Family, Single Barrel
  • Voltage Rating: 600V AC/DC
  • Current Rating: 20A
  • Dimensions: 1.88 in (Length/Depth) x 1 in (Height) x 0.75 in (Width)
  • Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
  • Applications: Industrial branch circuit and feeder protection, motor circuits, transformers
  • AIC rating: 300kA @ 600V
  • Class Rating: CF
  • Velocity: TD - Time Delayed
  • Barrels: 1
  • Weight: 0.043 lb


Product Identification
  • UPC: 051712220941
  • GTIN: 00051712220941
